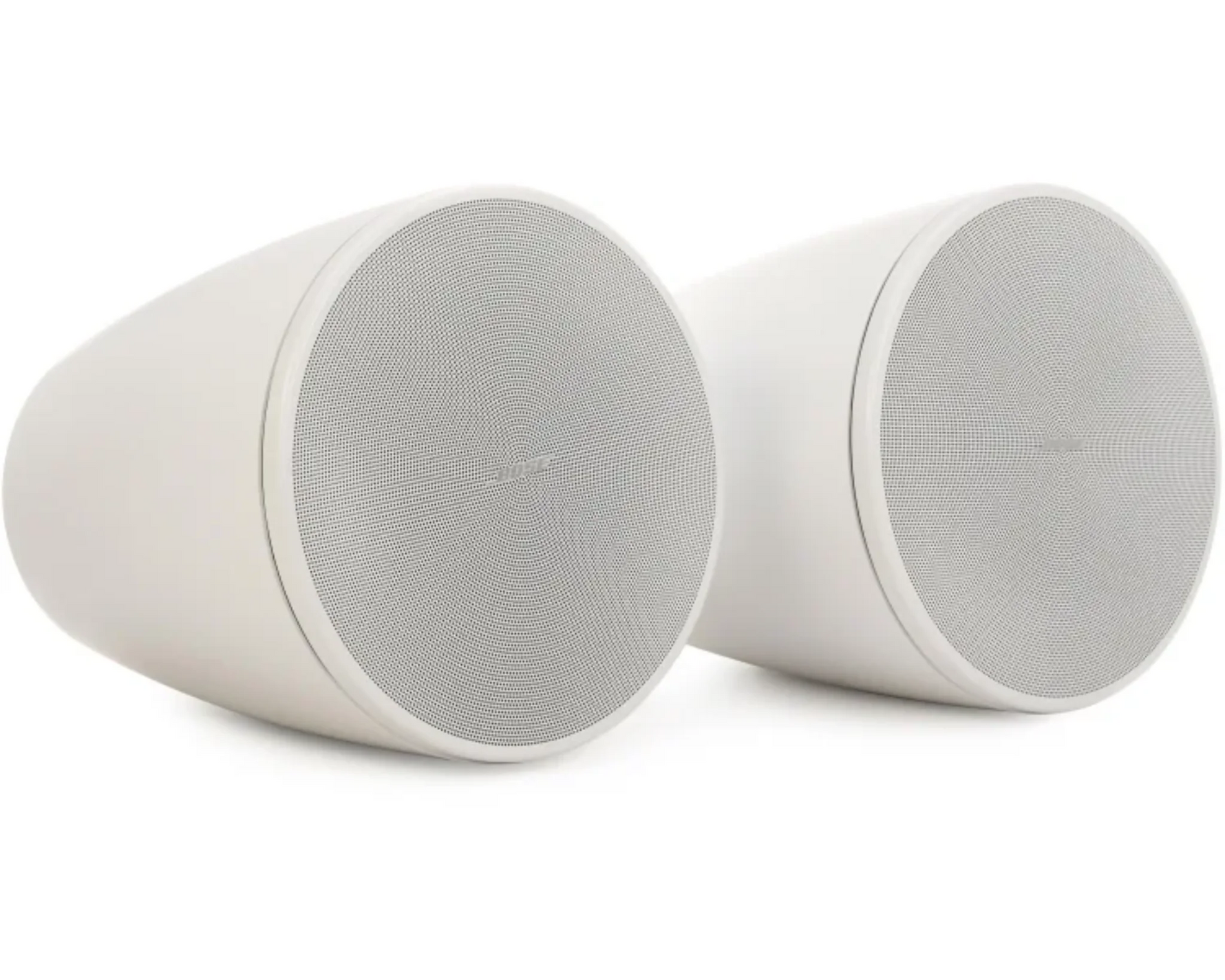

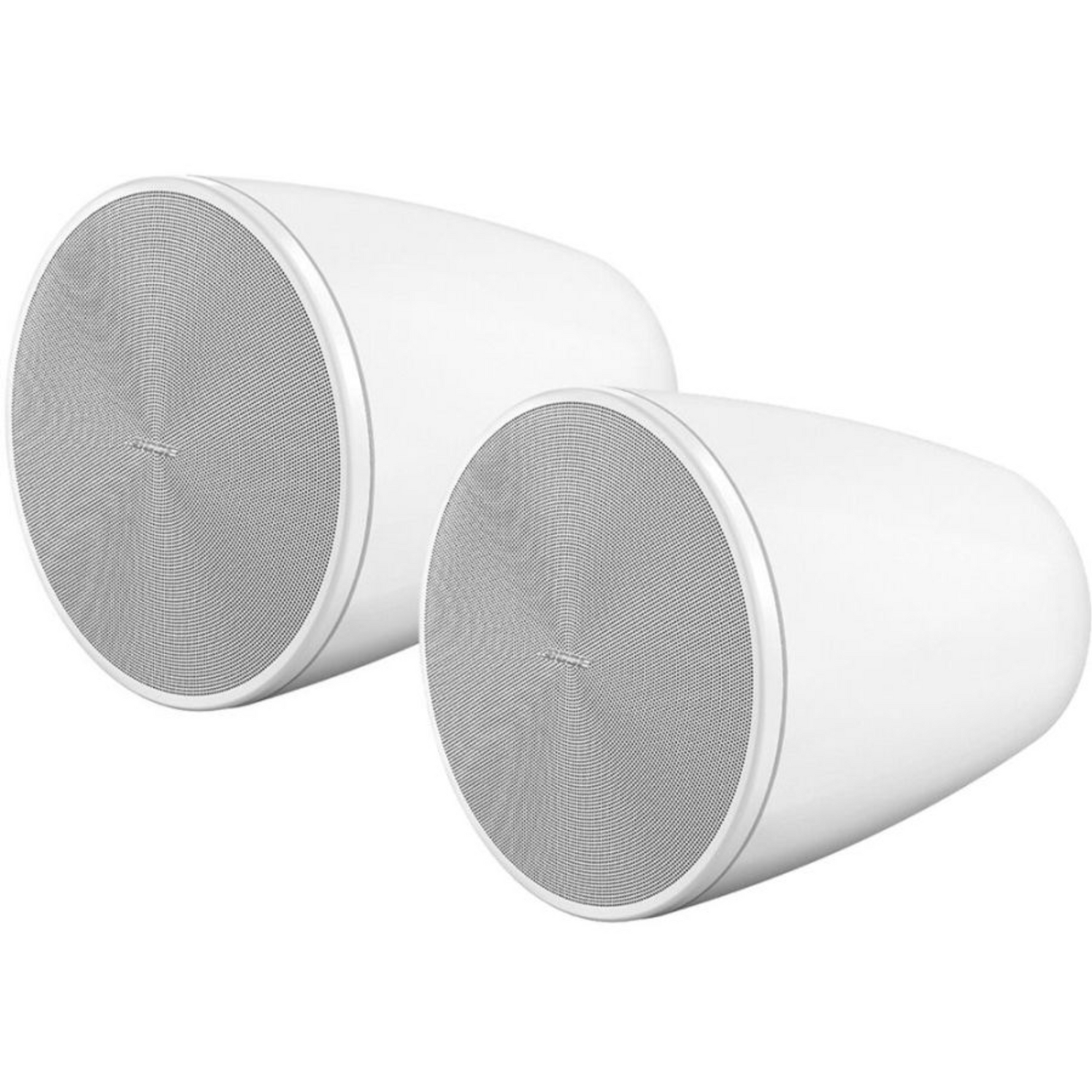

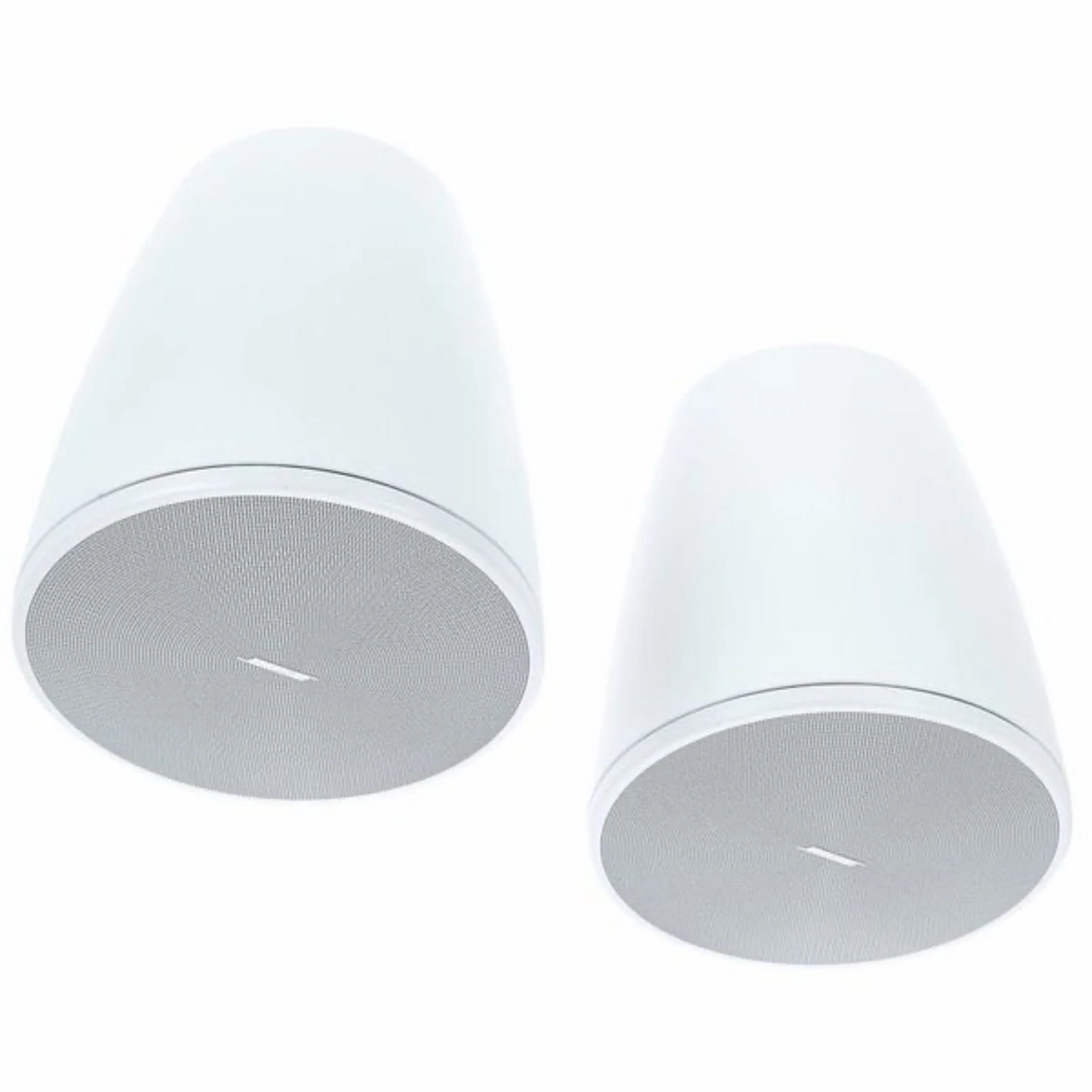

Bose DesignMax DM6PE Pendant Speakers - White (Pair, 125W)

Professional Audio Performance with Bose DesignMax

The Bose Professional DesignMax DM6PE represents the pinnacle of commercial audio engineering. These coaxial two-way, 125-watt pendant loudspeakers are specifically designed to deliver rich, immersive lows and crystal-clear, intelligible highs for any professional environment. Featuring a precision-engineered 6.5-inch woofer and a 1.25-inch tweeter seamlessly integrated within the advanced Dispersion Alignment system, these speakers guarantee a consistent and balanced listening experience across your entire space, ensuring audio clarity for both music and voice announcements.

With a clean, modern aesthetic, the DM6PE is perfectly suited for sophisticated indoor commercial installations while maintaining the rugged durability required for outdoor environments. Thanks to the IP55 outdoor rating, you can install these speakers in patios, entryways, or open-air venues with complete confidence in their weather resistance and long-term performance.

Key Features and Design Advantages

• Premium Acoustic Engineering: Coaxial two-way design featuring a 6.5-inch woofer and 1.25-inch tweeter, providing high-fidelity audio output.
• Dispersion Alignment Technology: Advanced technology that matches the acoustic pattern of the woofer to the tweeter, ensuring consistent sound coverage across the entire listening area.
• Durable Construction: Built to last with an IP55 outdoor rating and a robust powder-coated steel grille, capable of handling varying weather conditions.
• Sleek Pendant Aesthetics: The modern, elegant white finish combined with a recessed single-point suspension system hides all mounting hardware, offering a clean, unobtrusive look.
• Simplified Installation: Designed for efficiency, the units feature Euroblock connectors and convenient front-access audio wiring for rapid installation and easy maintenance.
• Customizable Branding: Each unit comes with removable logos, allowing the speakers to blend seamlessly into any room design or architectural decor.

Detailed Technical Specifications

• Frequency Response (+/-3 dB): 75 - 20,000 Hz
• Frequency Range (-10 dB): 62 - 20,000 Hz
• Nominal Coverage: 115° Conical pattern for wide sound distribution
• Power Handling (Long-term Continuous): 100 W
• Power Handling (Peak): 400 W - 500 W
• Sensitivity (SPL/1W @ 1 m): 89 dB
• Maximum SPL @ 1m: 110 dB (116 dB Peak output)
• Nominal Impedance: 8 Ohms (with transformer bypass options)
• Transformer Taps (70V): 2.5, 5, 10, 20, 40, 80 W
• Transformer Taps (100V): 5, 10, 20, 40, 80 W

Included in the Box

• (2) Bose DesignMax DM6PE Pendant Loudspeakers (White)
• (2) Professional Gripple adjustable suspension cable systems
• (4) Cable ties for secure wire management
• (2) Weather-resistant input covers for outdoor protection
• (1) Installation Guide for easy setup
