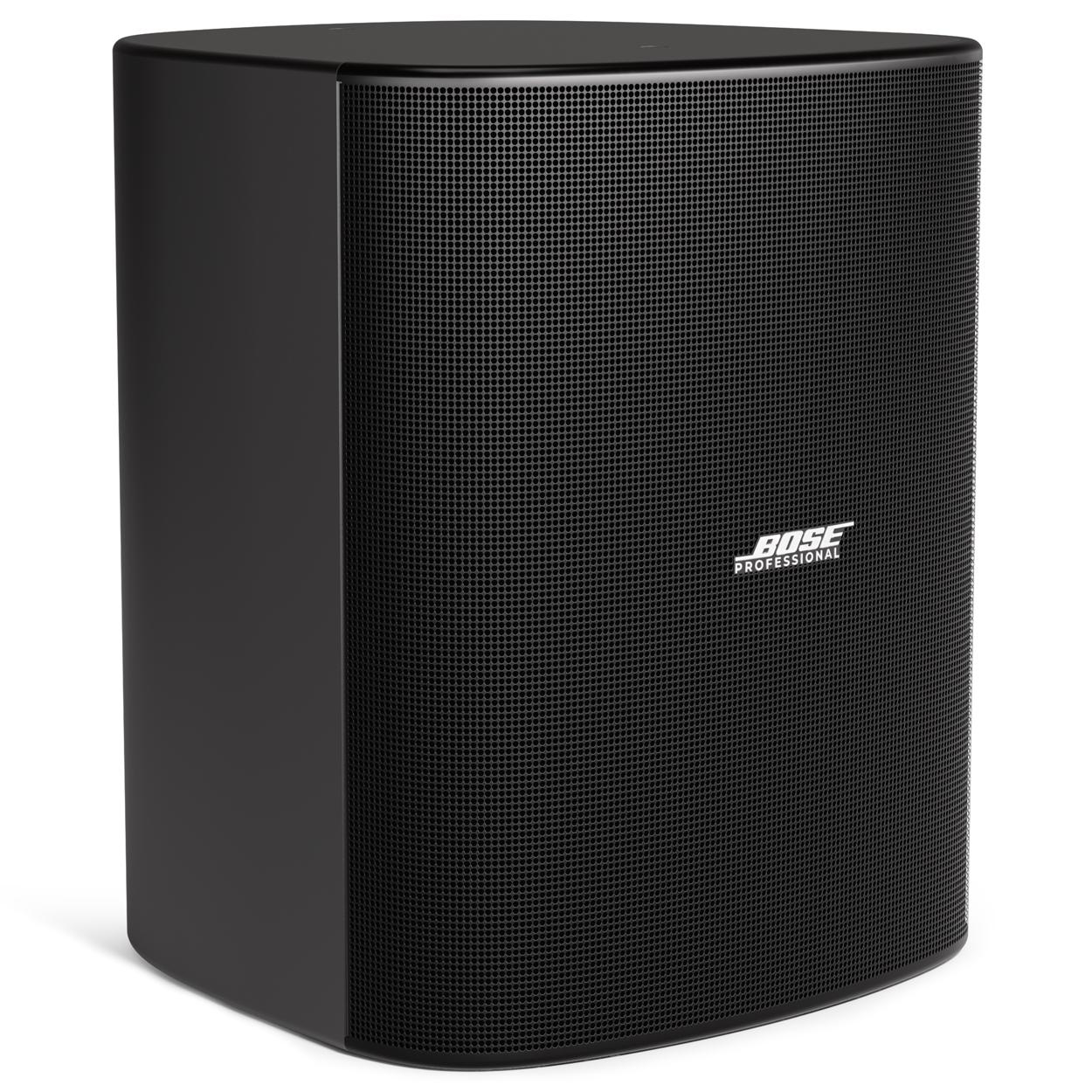

Bose Professional DesignMax DM12SE 12-Inch Surface-Mount Loudspeaker - Black

Professional Sound Quality for Commercial Spaces

The Bose Professional DesignMax DM12SE is a high-output, 12-inch coaxial surface-mount loudspeaker engineered for premium commercial audio installations. As a cornerstone of the versatile DesignMax series, this speaker provides deep, punchy bass and crystalline, intelligible highs, often eliminating the requirement for separate subwoofers in large commercial applications. Whether you are outfitting a high-end restaurant, a performance venue, or an outdoor commercial space, this unit ensures a consistent, high-fidelity listening experience across the entire coverage area.

Its unique coaxial point-source design effectively manages the sound dispersion, making it a reliable solution for complex acoustic environments. This speaker combines professional-grade hardware with a clean, sophisticated look that integrates seamlessly into any architectural style.

Key Features and Installation Benefits

• High-Performance Drivers: Features a powerful 12-inch weather-treated woofer paired with a 1.4-inch compression driver, providing exceptional full-range audio performance and clarity.
• Advanced Dispersion Alignment: The proprietary Dispersion Alignment system meticulously matches the woofer coverage to the tweeter pattern, ensuring phase-accurate, uniform audio reproduction throughout the venue.
• Durable IP55 Rating: Engineered for reliability, the DM12SE carries an IP55 outdoor rating. It includes a weather-resistant enclosure and a robust, powder-coated pan-and-tilt bracket to withstand exposure to the elements.
• Elegant Design: The enclosure features a modern aesthetic with a minimum-bezel grille, which can be easily customized or painted. The removable logo ensures a discreet look that suits any interior design motif.
• QuickHold Mounting: Installation is streamlined with the integrated QuickHold mounting system, designed to allow for fast, secure, and precise mounting, reducing labor time for professional installers.

Technical Specifications

• Frequency Range (-10 dB): 38 Hz – 20,000 Hz
• Nominal Coverage: 102° conical dispersion pattern
• Power Handling (Continuous): 300 W
• Power Handling (Peak): 1200 W
• Sensitivity (SPL / 1W @ 1m): 94 dB
• Maximum SPL @ 1m: 119 dB (Continuous), 125 dB (Peak)
• Nominal Impedance: 8 Ohms (transformer bypass mode)
• Environmental Rating: IP55 (Certified for outdoor/weather-exposed use)

Package Contents

• (1) Bose Professional DesignMax DM12SE Loudspeaker
• (1) Surface-Mount Pan-and-Tilt Mounting Bracket
• (1) Weather-resistant Input Panel Cover
• (1) Official Installation and Configuration Guide

Enhance your commercial sound system today with the reliability and power of the Bose DesignMax DM12SE, built to deliver superior acoustic performance in demanding environments.
