FEATURES

• 4 x 100-watt Low-/High-impedance Power Amplifier with Dual Feedback Loop System
• Auto-Stby
• Dante
• DSP

The Amplifier for Clear, Balanced Commercial Sound When it comes to commercial sound applications in places such as retail stores, classrooms, restaurants, hospitality venues, and conference centers, Sweetwater recommends investing in a Bose FreeSpace system headed by an IZA 2120-LZ Integrated Zone Amplifier. With the FreeSpace IZA 2120-LZ, users can easily connect laptops, music players, wireless presentation microphones, and more. This 4-input, 2-output mixer amplifier features selectable loudspeaker EQ to set the perfect standard for audio quality, and an Opti-voice paging system that delivers intelligible, clear speech and seamless transitions. Plus, when playing music, you can engage the Dynamic EQ to ensure full and balanced tunes no matter the volume level. For background/foreground music and paging applications, choose a Bose FreeSpace system!Simple, reliable sound Why do so many trust their commercial audio to Bose FreeSpace amplifiers? First of all, theyre easily tailored to meet the needs of your space

FEATURES

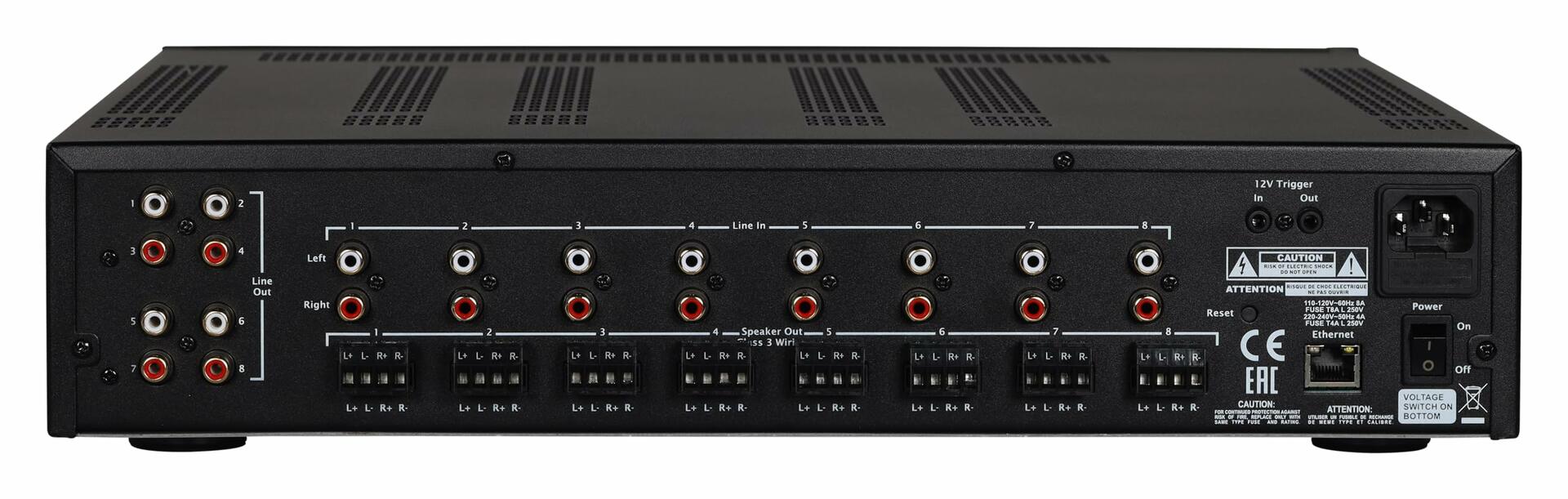

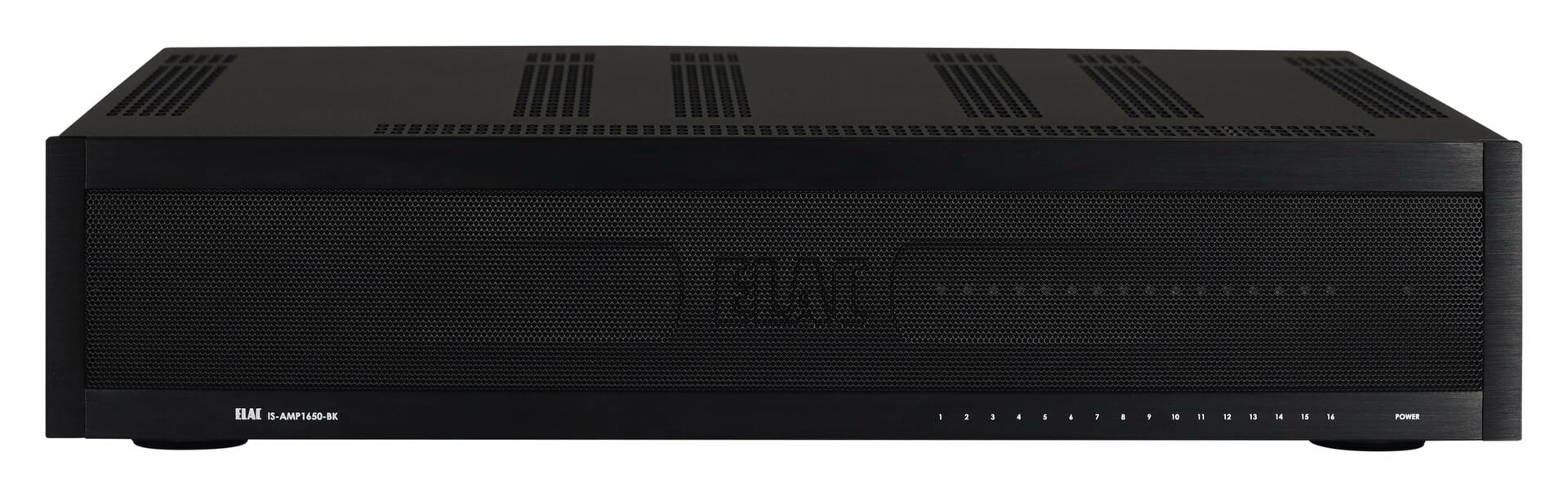

ELAC has a reputation for great sound, and now they're bringing it to whole-home audio. The IS-AMP1650-BK is a flexible solution that allows homeowners and custom audio integrators alike to power a large home audio system. This amp gives you ultra-flexible control over a multi-zone audio system using its web-based graphic user interface (GUI). This 16-channel amp can power stereo speaker pairs in up to eight different listening zones. Or you can bridge channel pairs to create a single, more powerful channel to drive more demanding speakers or a passive subwoofer. The amp has eight stereo pairs of analog RCA inputs assignable to one or more zones. Four pairs of RCA outputs let you feed connected sources to more amplifiers, receivers, or powered subwoofers. And eight sets of detachable Phoenix-style outputs let you connect your speakers using up to 12-gauge wire. Naming and assigning zones, directing output to other amps, and equalization are all handled by the GUI. If you have ELAC speakers, you can select model-specific EQ presets to optimize the sound. Or use the parametric equalizer to tweak the sound of each zone. You can even set high-pass and low-pass filters, great for zones with subwoofers.

FEATURES

• 16-channel amplifier with 8 independent playback zones
• 50 watts per channel into 8 ohms or 4 ohms with all channels driven
• 100 watts per channel into 8 ohms in bridged mode
• High-efficiency Class D amplification
• Frequency response: 20-20,000 Hz
• Web-based graphic user interface (GUI) for more intuitive system setup and tuning

Product info:

• 12-channel amplifier with 6 independent playback zones
• 75 watts per channel into 8 ohms or 4 ohms with all channels driven
• 150 watts per channel into 8 ohms in bridged mode
• high-efficiency Class D amplification
• signal-to-noise ratio: 95 dB
• web-based graphic user interface (GUI) for more intuitive system setup and tuning
  • full matrix audio routing assign any input to any output
  • digital signal processor (DSP) with customizable parametric EQ for each channel
  • preset EQ curves for ELAC speakers

Connections:

• 6 assignable stereo RCA line-level stereo inputs
• 8 RCA mono line-level stereo outputs that can be connected to additional amplifiers or powered subwoofers
• 12V trigger input and output for automated turn-on
• signal-sensing input activates the amplifier when a source is detected
• Phoenix-style speaker connectors support up to 12-gauge wire
• Ethernet port for network connection, firmware updates, and IP-control with 3rd party home automation systems
  • does not allow audio streaming
• removable AC power cord

Dimensions and other info:

• rack-mountable chassis
• 17"W x 3-15/16"H x 14-15/16"D (2U rack space)
• weight: 18.96 lbs.

FEATURES

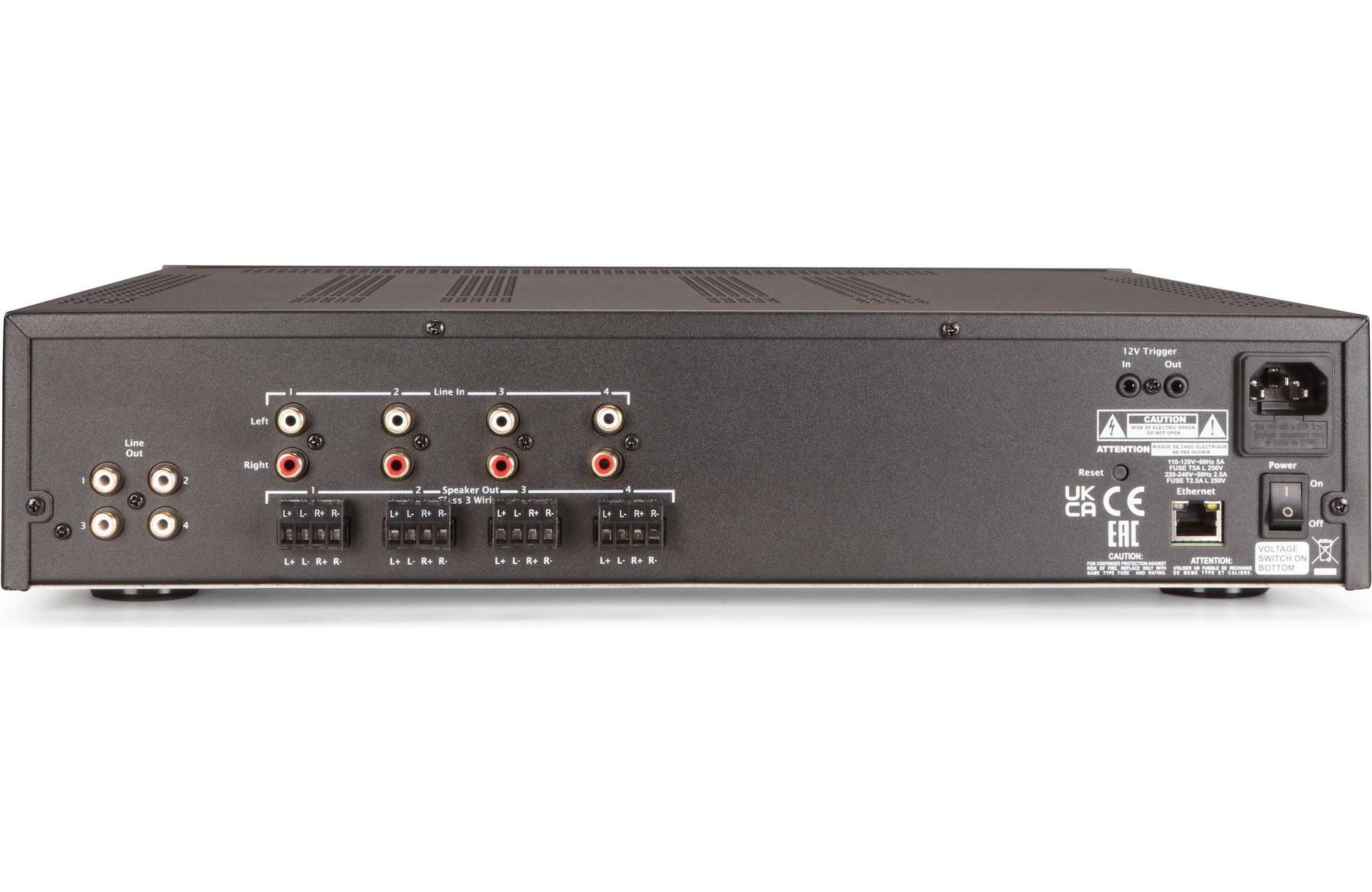

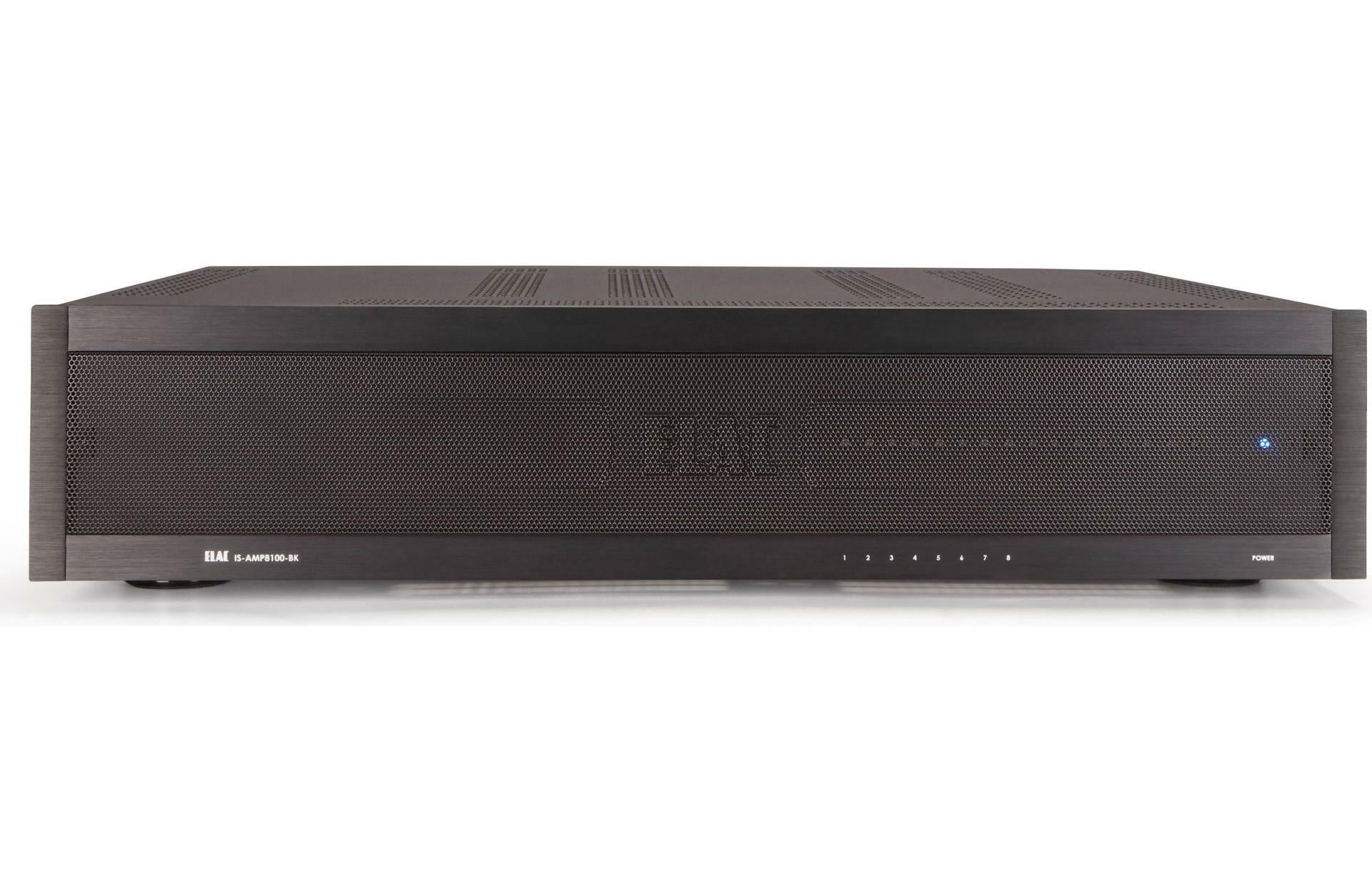

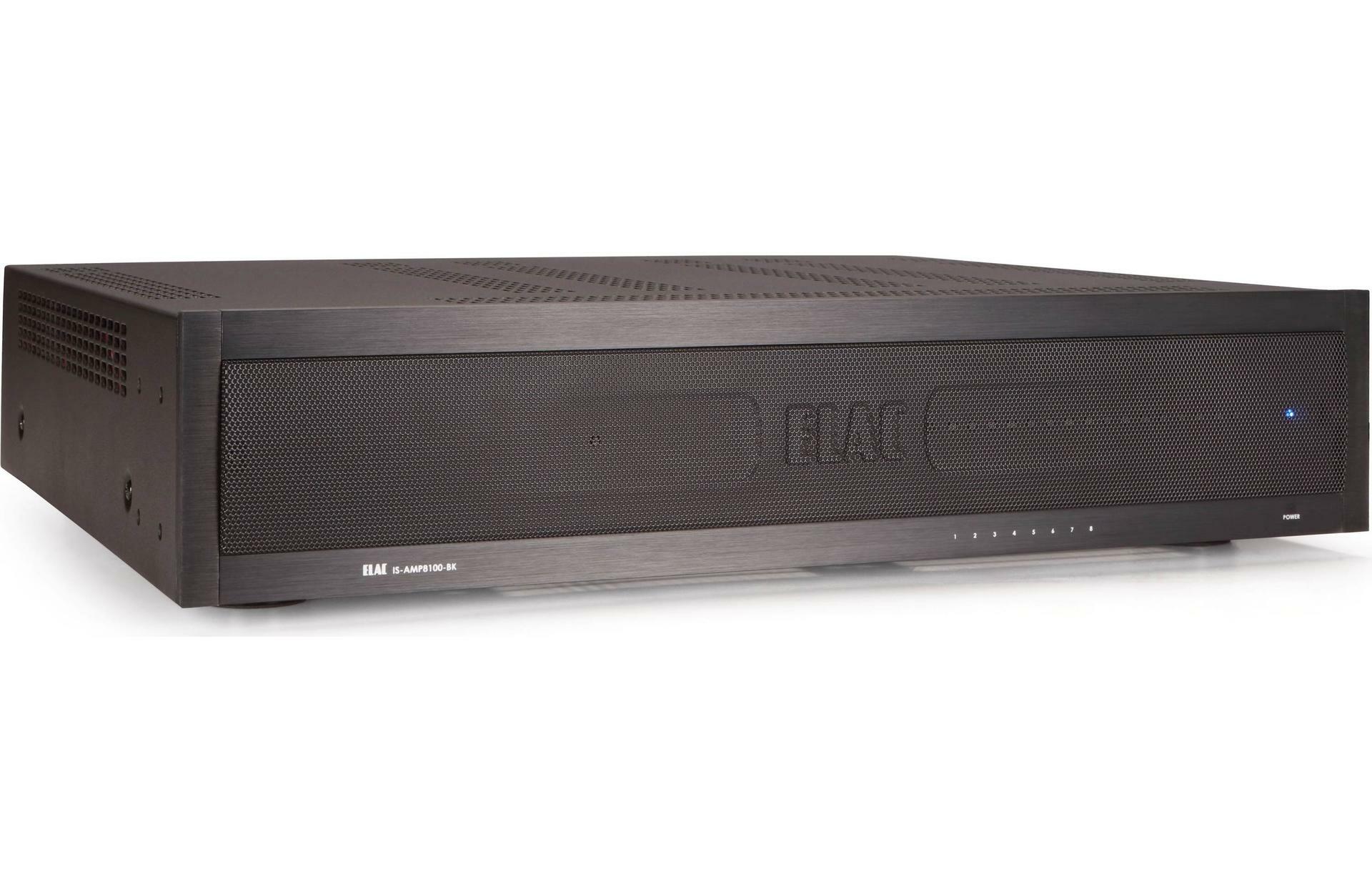

Product info:

• 8-channel amplifier with 4 independent playback zones


• 100 watts per channel into 8 ohms or 4 ohms with all channels driven


• 200 watts per channel into 8 ohms in bridged mode


• high-efficiency Class D amplification


• signal-to-noise ratio: 95 dB


• web-based graphic user interface (GUI) for more intuitive system setup and tuning


  • full matrix audio routing assign any input to any output


  • digital signal processor (DSP) with customizable parametric EQ for each channel


  • preset EQ curves for ELAC speakers





Connections:

• 4 assignable stereo RCA line-level stereo inputs


• 4 RCA mono line-level stereo outputs that can be connected to additional amplifiers or powered subwoofers


• 12V trigger input and output for automated turn-on


• signal-sensing input activates the amplifier when a source is detected


• Phoenix-style speaker connectors support up to 12-gauge wire


• Ethernet port for network connection, firmware updates, and IP-control with 3rd party home automation systems
  • does not allow audio streaming




• removable AC power cord

Dimensions and other info:

• rack-mountable chassis


• 17"W x 3-15/16"H x 14-15/16"D (2U rack space)


• weight: 16.32 lbs.

FEATURES

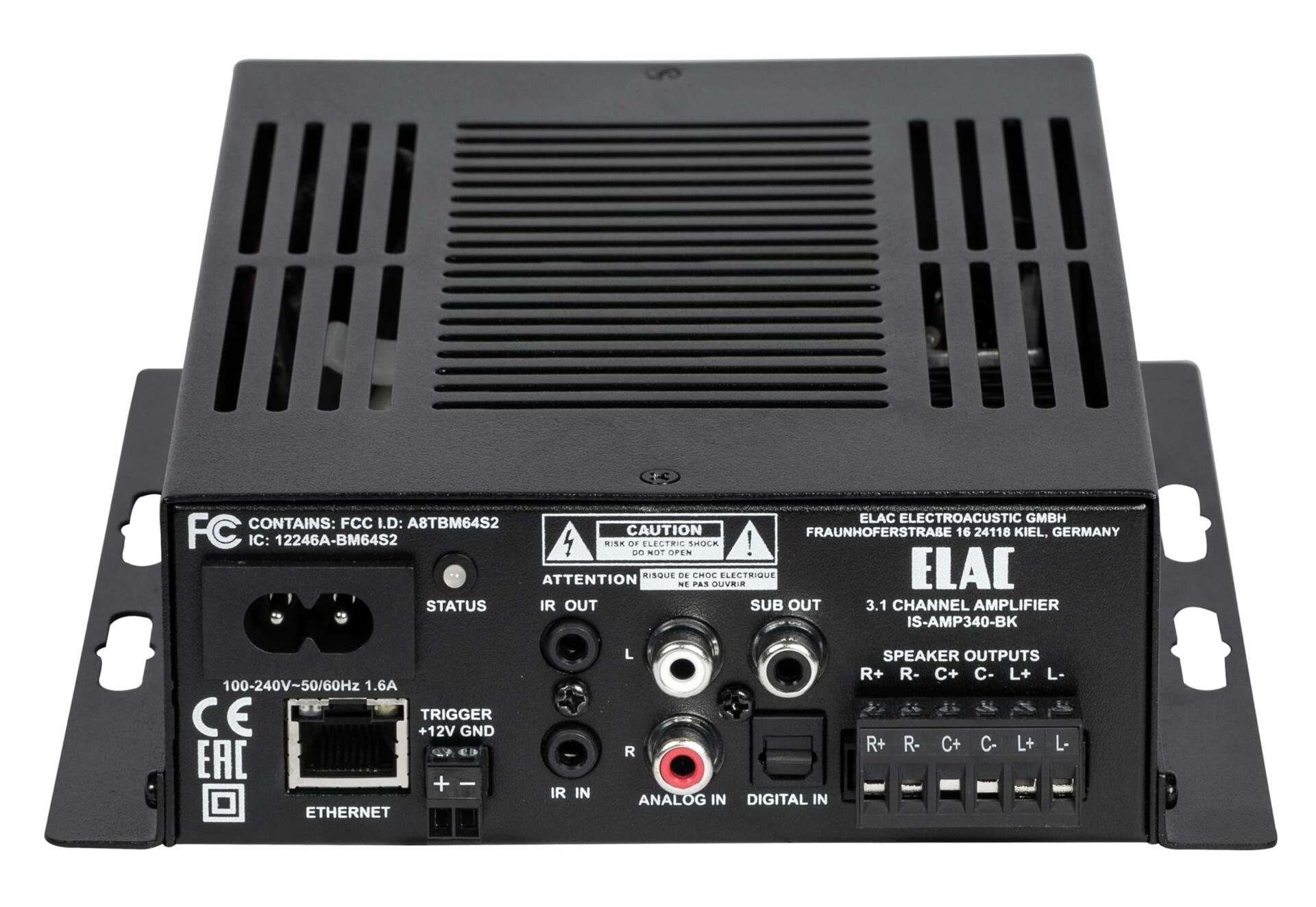

Moving from your TV's built-in speakers to a separate sound system can breathe new life into your entertainment. ELAC's IS-AMP340 custom-install amplifier mounts on the wall behind your TV and can be configured for 2-channel or 3-channel sound. Keep it simple by connecting just two speakers. Or add a center channel speaker and take advantage of the amp's built-in Dolby Digital decoding for clearer dialogue. You can even connect a powered subwoofer. This amp connects to your home network router via an Ethernet cable for simplified setup and tuning using its web-based graphic user interface (GUI). ELAC's exclusive DSP-controlled ABC (Auto Blend & Calibrate) technology ensures seamless integration of your subwoofer with the main speakers. You also get model-specific EQ presets to optimize the sound for ELAC speakers. A handy remote learning feature gives you the flexibility to set up third-party remote controls using the companion mobile app for your smartphone or tablet.

FEATURES

• Custom-install amplifier supports 2- or 3-channel configurations
• 40 watts x 3 into 8 ohms
• 60 watts x 2 into 8 ohms
• Web-based graphic user interface (GUI) for system setup and DSP-controlled tuning
• Bluetooth wireless connection for audio streaming and control via free Apple or Android, app
• Remote learning feature with included IR sensor
• Slim, compact design with wall-mount bracket

The Alchemy DPA-2 Power Amplifier is all about dynamic musicality, thanks to a design that combines Class A circuit topology composed of discrete FETs and a linear power supply using a toroidal transformer. It is a stellar Alchemy product from the wizards on ELAC's design team, led by the legendary designer Peter Madnick of Audio Alchemy and Constellation Audio fame. The DPA-2's pure analog input stage preserves all the detail and nuance of the most delicate passages. The Class D output stage with switching power supply results in impressive output combined with cool-running efficiency. The power output of the Alchemy DPA-2 isn't just formidable, it's easily configurable for the needs of every system. Producing 325 watts-per-channel in stereo, the Alchemy amplifier can be easily switched to deliver 650 watts in monaural mode, which is sufficient to drive the most demanding, power-hungry loudspeakers. The DPA-2 is loaded with must-have features and meticulously designed circuitry that's fully balanced from input to output, starting with user selectable high/low gain settings to match any preamplifier. It boasts a fully discrete FET input stage with DC servo-controlled output stage, ultra-low-noise DC voltage regulators, a toroidal transformer and linear power supply for the input stage, and a high-efficiency, low-noise switching power supply for the Class D PWM output stage. The output power can be read out on the LCD information screen. Inputs pairs consist of unbalanced RCA and balanced XLR. Outputs are two pairs of high-quality 5-way binding posts. There is a 12-volt trigger input and pass-through, too. Dimensions (HxWxD) In: 02.00 x 17.50 x 15.00 including jacks, Net Weight: 14.00 lbs. Frequency Response: 5hz-20khz +/- 0.2dB Nominal Thd+N (1 Watt Into 8): 0.003%. Inputs: Unbalanced RCA, Balanced XLR, Outputs: Binding post 5-way.

FEATURES

• Premium, powerful, stereo/mono power amplifier, Selectable high/low gain to match any preamplifier
• Fully discrete FET input stage with DC servo-controlled output stage, Fully balanced input to output
• Ultra-low-noise DC voltage regulators, Toroidal transformer and linear power supply for input stage
• High-efficiency, low-noise switching power supply for output stage, Output power can be read out on the LCD information screen
• Liquid Crystal Display for clear user information, 12 V trigger input and pass-through

Put the power where you need it. PowerShare amplifiers deliver outstanding audio performance and reliability with patented technologies inherited from the field-proven PowerMatch line - now with added flexibility. Using innovative technology, the PowerShare PS604D shares power across all output channels and delivers 600 watts for installed applications. This means you can distribute the total 600 watts asymmetrically across all outputs or use any individual output to deliver full power. And with support for both low- and high-impedance loads up to 100V, it?s easy to adapt PowerShare amplifiers to a wide range of applications. ControlSpace Designer software allows for Ethernet-based configuration and quick setup of external control options. With onboard Dante audio networking, you have the flexibility to place PowerShare amplifiers away from source locations and closer to loudspeakers. This unique set of features and technologies makes PowerShare one of the most versatile, high-performance amplifiers available today.

FEATURES

• PowerShare Technology - Distribute the total 600 watts asymmetrically across all outputs using patented PowerShare technology, which allows each output to deliver full power. Instead of selecting amplifier power based on the needs of the largest zone, you now have the freedom to use total amplifier power in any application. This enables more flexibility during the initial design, or later on-site when making unplanned changes that take advantage of surplus power.
• Load-independent Outputs - Configure any channel for low-impedance (4-8 Ohms) or high-impedance (70/100V) applications without bridging or using jumpers.
• Integrated Dante Audio Networking - Support four audio input channels from a Dante network and mix onboard analog inputs with digital Dante inputs as selected in ControlSpace Designer software.
