The Bose L1 Pro16 system offers a streamlined balance of power and portability, making it an excellent choice for performers and event hosts who need reliable, professional-grade sound. Its innovative design features a 16-driver J-shaped line array that delivers a wide 180-degree horizontal dispersion, ensuring consistent audio coverage for the entire audience. With a built-in subwoofer powered by Bose's proprietary RaceTrack technology, the system produces an extended low-frequency response down to 42Hz, providing rich, full-bodied sound. Compact and easy to transport, the L1 Pro16 is designed for gigging DJs, small venues, and karaoke setups, delivering uncompromising audio quality in a small footprint.

RaceTrack Subwoofer Delivers Deep Bass

At the core of the L1 Pro16 is its advanced RaceTrack subwoofer, engineered to combine high-performance sound with space-saving design. Measuring just 10"x18", the woofer rivals the output of a conventional 15" driver while maintaining a slimmer, more portable profile. This optimized design not only enhances bass response but also improves the system's center of gravity, making it easier to transport and set up. Paired with the 16-driver J-shaped line array, the subwoofer provides a balanced and powerful low-end, ideal for delivering impactful bass without the bulk of traditional systems.

Integrated Mixer With Flexible Inputs

The L1 Pro16 includes a built-in mixer with versatile input options to accommodate a wide range of audio sources. It features two phantom-powered combo inputs for XLR or 1/4" connections, as well as 1/4" and 3.5 mm AUX inputs for additional devices. Bluetooth connectivity enables wireless streaming, making it easy to play backing tracks or music directly from your phone or tablet. Illuminated rotary encoders offer quick access to volume, tone, and reverb settings, and EQ presets are available for live or recorded music. This integrated mixer provides comprehensive control, ensuring optimal sound in any performance scenario.

Speaker Array With Durable Design for Professional Use

Built with gigging professionals in mind, the L1 Pro16 features a lightweight yet sturdy construction that stands up to the demands of frequent travel and performance. The compact column and subwoofer design allow for quick assembly and teardown, saving valuable setup time. Materials are carefully chosen to ensure longevity, while the system's modular components make it easy to transport and store. Despite its portable size, the L1 Pro16 delivers a maximum SPL of 124dB, proving that powerful sound doesn't have to come at the expense of convenience or durability.

Pro Speaker System Designed for Performers and Event Hosts

The Bose L1 Pro16 is tailored for gigging musicians, DJs, and event professionals who need a reliable, portable sound system that doesn't compromise on quality. Its compact design makes it ideal for small-to-medium venues, while its 180-degree dispersion ensures even coverage for audiences. Whether you're hosting a karaoke night, performing live, or running an event, the L1 Pro16 provides the clarity and power needed to elevate your sound. Explore the Bose L1 Pro16 to experience professional-grade audio performance in a portable package.

Features

• Built-in mixer with illuminated rotary encoders for easy stage adjustments
• RaceTrack woofer delivers deep bass with a slim lightweight design
• Bluetooth streaming supports wireless playback for music or karaoke tracks
• Compact column array provides 180-degree coverage for consistent audience sound
• Phantom-powered inputs accommodate microphones instruments and sound sources
• EQ presets optimize tone for live or recorded music applications
• Portable design folds easily for travel and storage convenience
• Extended low-frequency response reaches down to 42Hz for rich sound
• 124dB peak SPL ensures powerful audio for small-to-medium venues
• Durable build quality provides reliability for gigging musicians and DJs

Specs

System

• Frequency response: Down to 42Hz
• Coverage pattern: 180 degrees
• Maximum SPL: 124dB
• Driver configuration: 16-driver J-shaped line array
• Woofer design: Proprietary RaceTrack driver

Portability

• Subwoofer dimensions: 10 x 18"
• Integrated carry handles: Yes
• Compact footprint: Ideal for small-to-medium venues
• Optimized center of gravity: Easy transport
• Setup time: Minutes

Mixer

• Inputs: Two combo XLR-1/4" phantom-powered
• AUX inputs: 1/4" and 1/8" (3.5 mm)
• Streaming capability: Bluetooth
• Rotary encoders: Illuminated
• EQ presets: Live music, recorded music and more

Wireless Control

• App compatibility: L1 Mix app
• Real-time synchronization: Mixer and app
• Custom EQ presets: ToneMatch library
• Control features: Volume, tone and reverb

     Room tuning: Walk and adjust settings

FEATURES

If you're a gadget lover, our electronics catalog is your dream destination. Choose from hundreds of gadgets and accessories to suit different uses and add some entertainment, ease, and convenience to your life. Features: Panaray MA12EX Wired. High-quality construction and modern designs. Superior performance and reliability. Specifications: Color: White. Weight: 23.5 lbs

FEATURES

FEATURES

For crystal-clear sound that rises above the noise, the QSC KC12 Column PA System is your ultimate tool for sonic excellence. This isnt just a speaker its a 3000-watt powerhouse designed to turn any venue into an acoustic haven, delivering precision with every note and authority with every beat. The KC12 blends sophisticated design with unmatched acoustic performance, ensuring your audience feels every thundering kick drum and hears every delicate vocal with breathtaking clarity.

FEATURES

• 3-Way Driver Configuration: Meet the ultimate sound team. A powerful 12-inch subwoofer delivers deep, room-shaking bass, while dual 4-inch midrange drivers ensure vocals and instruments come through with incredible clarity. Topping it off, a 1-inch compression driver paired with QSC’s innovative LEAF waveguide produces crisp, sparkling highs — no harshness, even at high volumes.

For crystal-clear sound that rises above the noise, the QSC KC12 Column PA System is your ultimate tool for sonic excellence. This isnt just a speaker its a 3000-watt powerhouse designed to turn any venue into an acoustic haven, delivering precision with every note and authority with every beat. The KC12 blends sophisticated design with unmatched acoustic performance, ensuring your audience feels every thundering kick drum and hears every delicate vocal with breathtaking clarity.

FEATURES

• • 3-Way Driver Configuration: Meet the ultimate sound team. A powerful 12-inch subwoofer delivers deep, room-shaking bass, while dual 4-inch midrange drivers ensure vocals and instruments come through with incredible clarity. Topping it off, a 1-inch compression driver paired with QSC’s innovative LEAF waveguide produces crisp, sparkling highs — no harshness, even at high volumes.

• PRX One PA tower loudspeaker offers primal power at any volume with the 2000 Watt (peak) Class-D amplifier that powers the 12 subwoofer. Wired Electric.
• Twelve 2.5 high-frequency drivers that combine for a total frequency response from 20 to 35Hz and a stunning SPL output of 130dB
• A full suite of Digital Signal Processing, and professional Lexicon and dbx effects including reverb, delay, compression and dbx DriveRack technology featuring AFS Pro Automatic Feedback Suppression.
• Plus, the one-touch ducking by Soundcraft ensures speech is always heard. The integrated 7-channel digital mixer with dual-operating mode gives the user full access to their input faders as well as channel controls
• Acoustic innovations deliver unrivaled sonic performance with the 12 custom-engineered tweeters that work in combination with JBL A.I.M. (Array Inumbration Mechanics) that geometrical optimize array-shading technology.
• Every PRX ONE undergoes 100 hours of JBL stress testing to ensure flawless performance in the real-world. The system is housed in a durable shell thats rugged enough for the most demanding gigs yet still discreet. Weight is 55.65 lbs.
• The included nylon carrying bag for the array and a ComfortGrip handle simplify transport. For permanent installations, there is an optional bracket and adapter allowing the array to be wall or truss-mounted independently of the subwoofer.

FEATURES

• PRX One PA tower loudspeaker offers primal power at any volume with the 20000 Watt (peak) Class-D amplifier that powers the 12” subwoofer. Wireless.
• Twelve 2.5” high-frequency drivers that combine for a total frequency response from 20 to 35Hz and a stunning SPL output of 130dB
• A full suite of Digital Signal Processing, and professional Lexicon and dbx effects including reverb, delay, compression and dbx DriveRack technology featuring AFS Pro Automatic Feedback Suppression.
• Plus, the one-touch ducking by Soundcraft ensures speech is always heard. The integrated 7-channel digital mixer with dual-operating mode gives the user full access to their input faders as well as channel controls
• Acoustic innovations deliver unrivaled sonic performance with the 12 custom-engineered tweeters that work in combination with JBL A.I.M. hat geometrical optimize array-shading technology.
• Every PRX ONE undergoes 100 hours of JBL stress testing to ensure flawless performance in the real-world. The system is housed in a durable shell that’s rugged enough for the most demanding gigs yet still discreet. Weight is 55.65 lbs.
• The included nylon carrying bag for the array and a ComfortGrip handle simplify transport. For permanent installations, there is an optional bracket and adapter allowing the array to be wall or truss-mounted independently of the subwoofer.

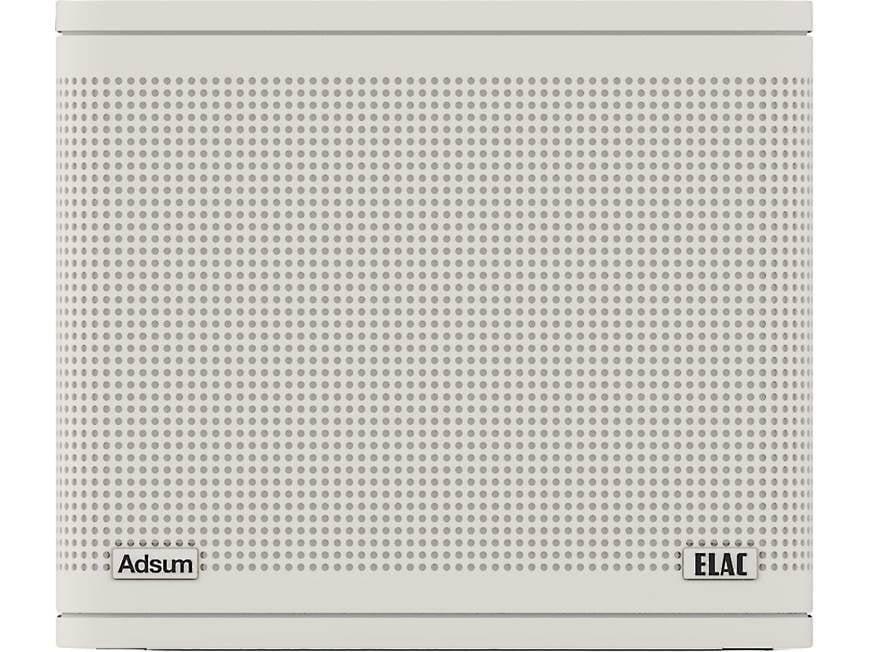

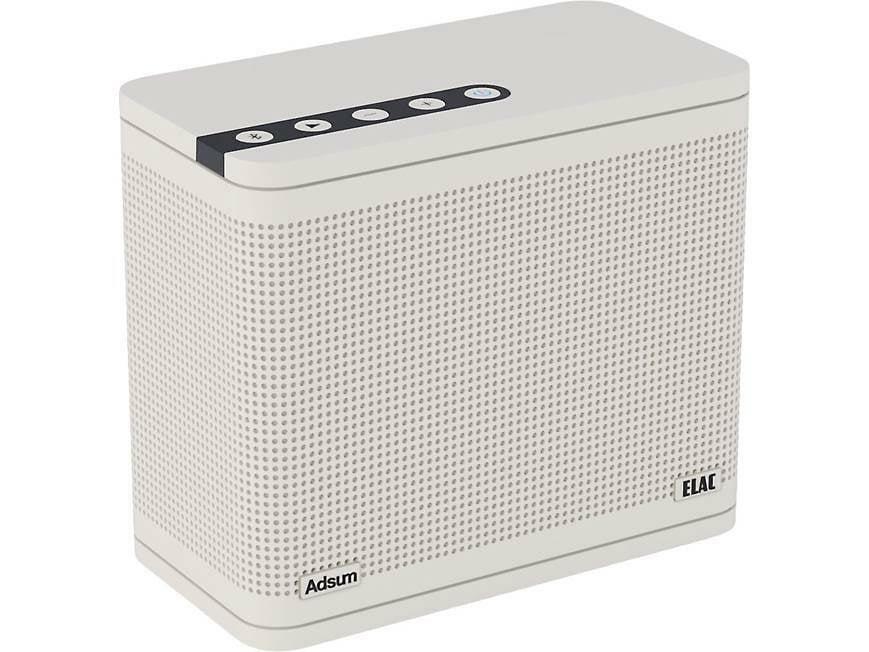

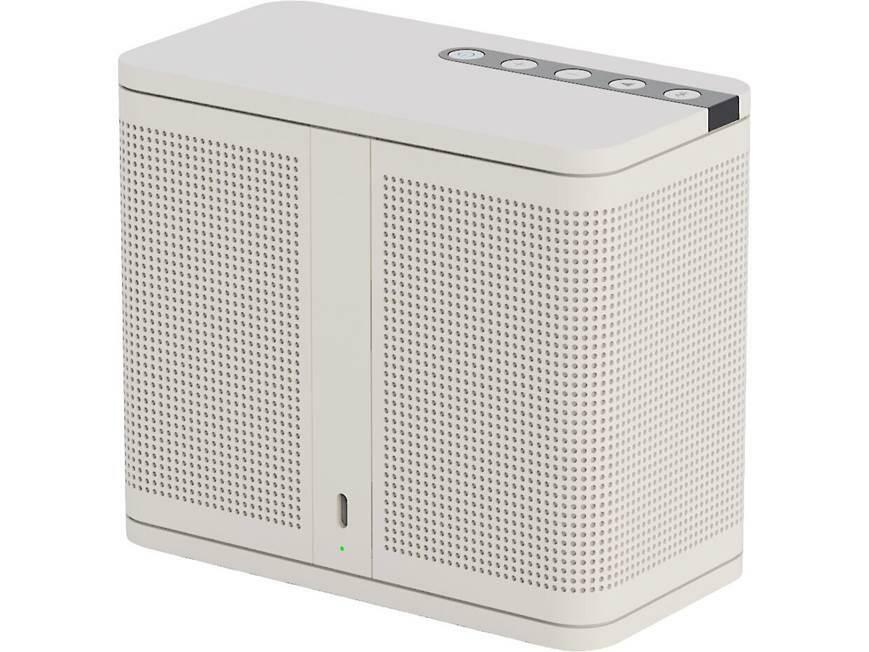

Product info:

• one 3" full-range driver and two passive bass radiators


• 10 watts RMS of built-in amplification


• frequency response: 55-19,600 Hz (-10dB)


• Bluetooth 5.3 for wireless music streaming


• Dual Play mode allows stereo pairing with another ELAC NAVA100 speaker (sold separately)


• aluminum exterior
  • co-branded with Brooklyn clothier Adsum in a stylish cream color




• soft-touch control buttons
  • Bluetooth, play, volume down, volume up, power




• built-in rechargeable battery


  • USB-C charging port (cable included)


  • charging time: 4-5 hours (standard) or 2 hours (1.5A)


  • lasts up to 15 hours at 25% volume or up to 6 hours at 100% volume





Other info:

• 5.9"W x 5.04"H x 3.07"D


• weight: 3.09 lbs.

FEATURES

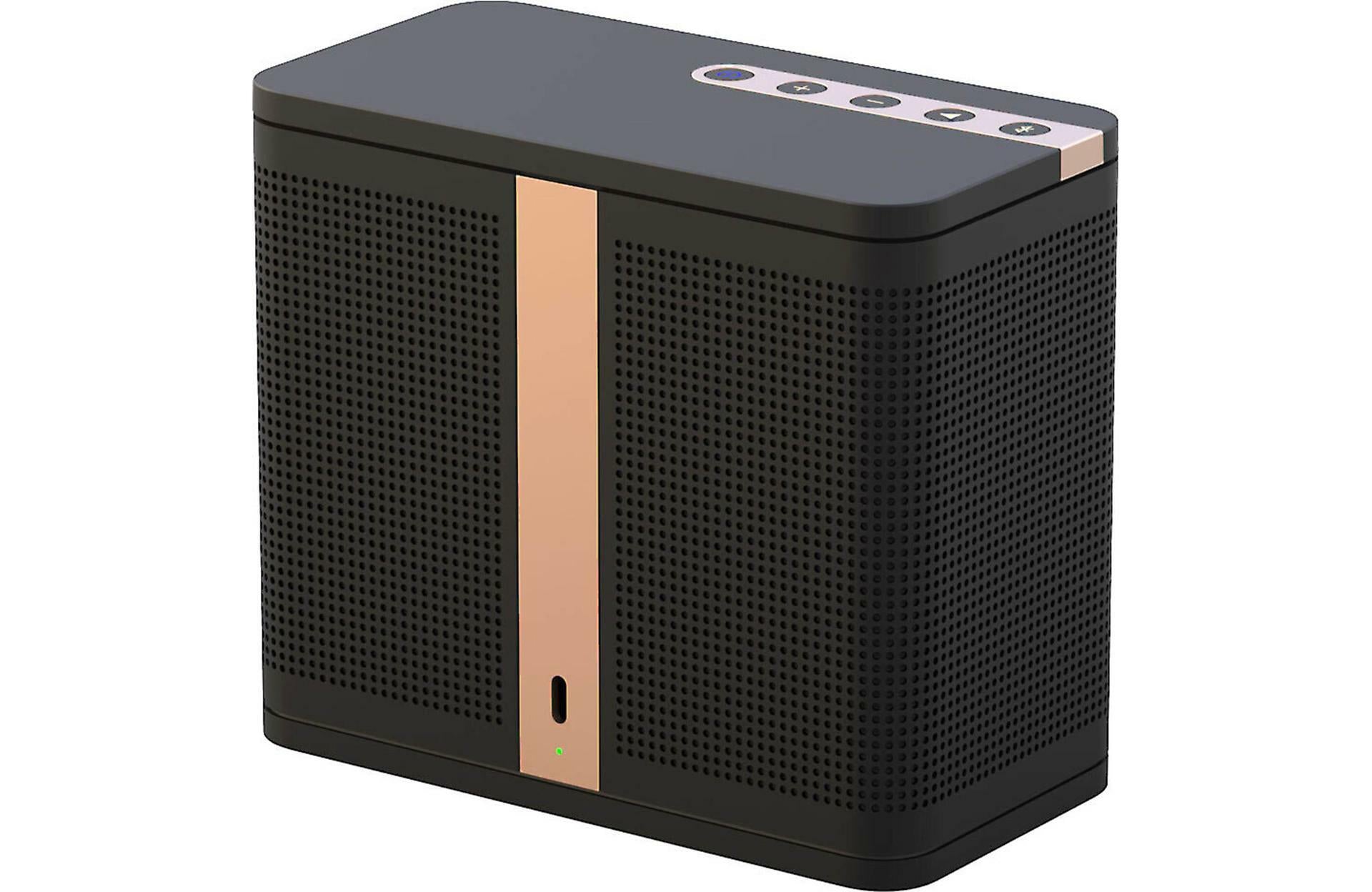

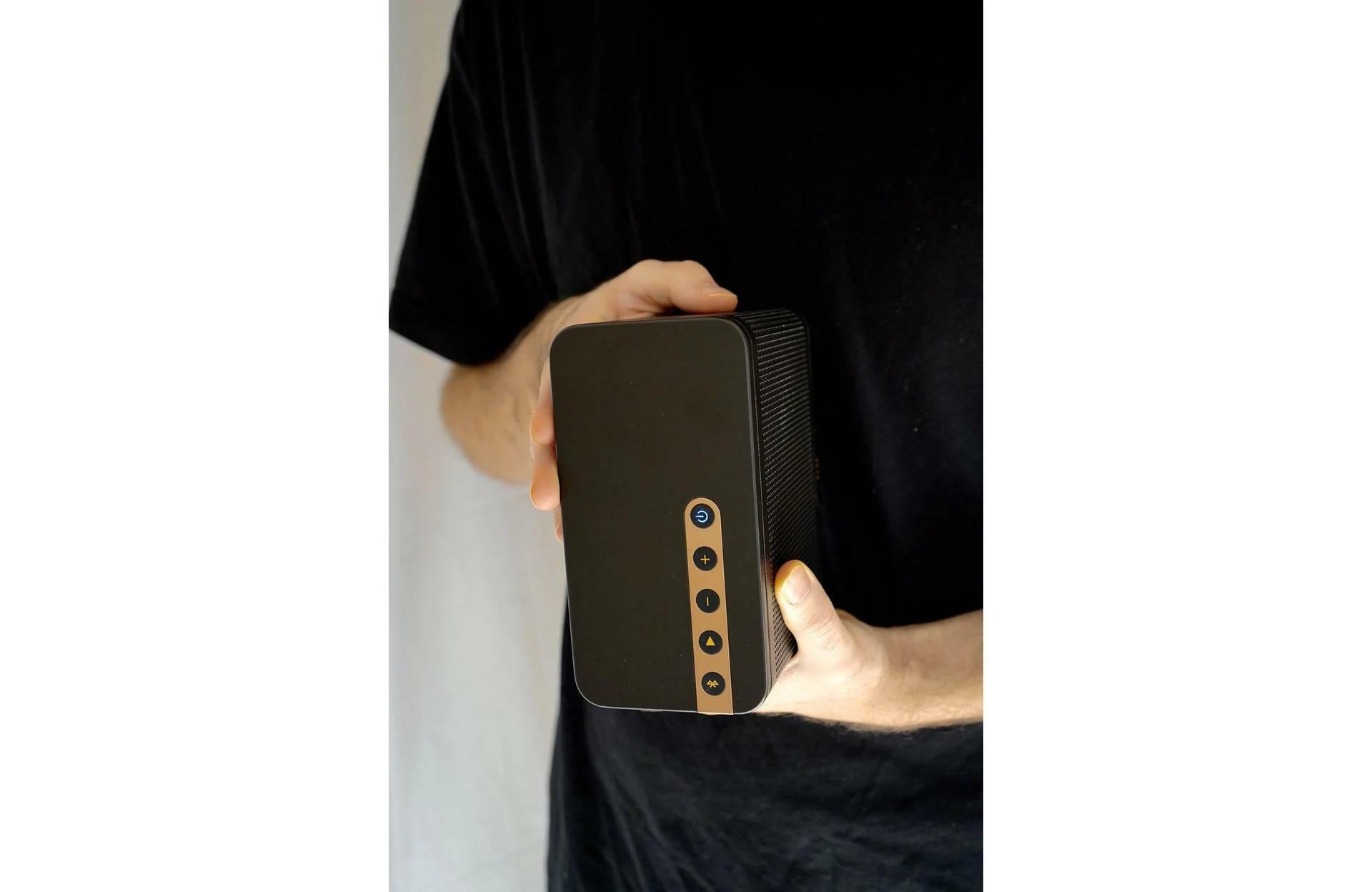

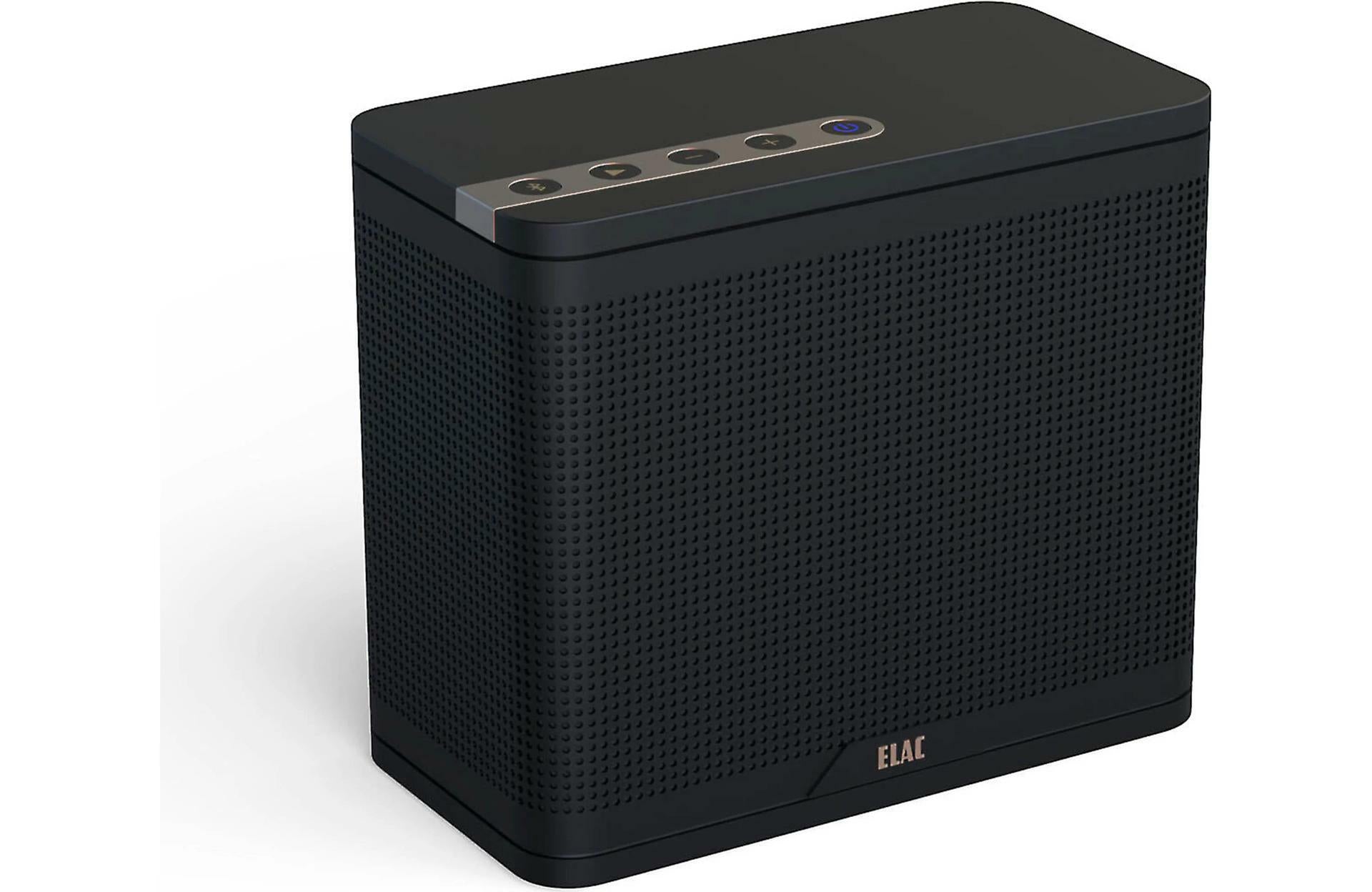

Product info:

• one 3" full-range driver and two passive bass radiators
• 10 watts RMS of built-in amplification
• frequency response: 55-19,600 Hz (-10dB)
• Bluetooth 5.3 for wireless music streaming
• Dual Play mode allows stereo pairing with another ELAC NAVA100 speaker (sold separately)
• aluminum exterior
• soft-touch control buttons
  • Bluetooth, play, volume down, volume up, power
• built-in rechargeable battery
  • USB-C charging port (cable included)
  • charging time: 4-5 hours (standard) or 2 hours (1.5A)
  • lasts up to 15 hours at 25% volume or up to 6 hours at 100% volume

Other info:

• 5.9"W x 5.04"H x 3.07"D
• weight: 3.09 lbs.

FEATURES

FEATURES

• PRX One PA tower loudspeaker offers primal power at any volume with the 2000 Watt (peak) Class-D amplifier that powers the 12 subwoofer. Wired Electric.
• Twelve 2.5 high-frequency drivers that combine for a total frequency response from 20 to 35Hz and a stunning SPL output of 130dB
• A full suite of Digital Signal Processing, and professional Lexicon and dbx effects including reverb, delay, compression and dbx DriveRack technology featuring AFS Pro Automatic Feedback Suppression.
• Plus, the one-touch ducking by Soundcraft ensures speech is always heard. The integrated 7-channel digital mixer with dual-operating mode gives the user full access to their input faders as well as channel controls
• Acoustic innovations deliver unrivaled sonic performance with the 12 custom-engineered tweeters that work in combination with JBL A.I.M. (Array Inumbration Mechanics) that geometrical optimize array-shading technology.
• Every PRX ONE undergoes 100 hours of JBL stress testing to ensure flawless performance in the real-world. The system is housed in a durable shell thats rugged enough for the most demanding gigs yet still discreet. Weight is 55.65 lbs.
• The included nylon carrying bag for the array and a ComfortGrip handle simplify transport. For permanent installations, there is an optional bracket and adapter allowing the array to be wall or truss-mounted independently of the subwoofer.

FEATURES

• PRX One PA tower loudspeaker offers primal power at any volume with the 2000 Watt (peak) Class-D amplifier that powers the 12” subwoofer. Wired Electric.
• Twelve 2.5” high-frequency drivers that combine for a total frequency response from 20 to 35Hz and a stunning SPL output of 130dB
• A full suite of Digital Signal Processing, and professional Lexicon and dbx effects including reverb, delay, compression and dbx DriveRack technology featuring AFS Pro Automatic Feedback Suppression.
• Plus, the one-touch ducking by Soundcraft ensures speech is always heard. The integrated 7-channel digital mixer with dual-operating mode gives the user full access to their input faders as well as channel controls
• Acoustic innovations deliver unrivaled sonic performance with the 12 custom-engineered tweeters that work in combination with JBL A.I.M. (Array Inumbration Mechanics) that geometrical optimize array-shading technology.
• Every PRX ONE undergoes 100 hours of JBL stress testing to ensure flawless performance in the real-world. The system is housed in a durable shell that’s rugged enough for the most demanding gigs yet still discreet. Weight is 55.65 lbs.
• The included nylon carrying bag for the array and a ComfortGrip handle simplify transport. For permanent installations, there is an optional bracket and adapter allowing the array to be wall or truss-mounted independently of the subwoofer.

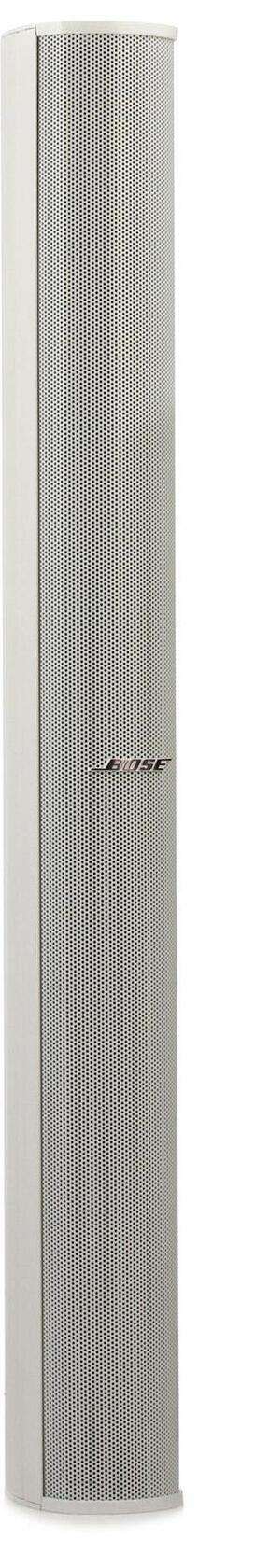

Articulated Array speaker configuration provides wider 160 horizontal coverage and weather-resistant components allow use in outdoor applications. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any dcor.

Twelve 2.25" (64 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control

Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves throw distance and reduces unwanted floor/ceiling reflections

Articulated Array design provides wide 160 horizontal coverage with 20 nominal vertical coverage for a single module. Actual vertical coverage varies with number of modules in line array configuration

Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers

Optional brackets allow easy installation of single-, double- or triple-stack line array modules

Technical Summary

Frequency Response (+/-3 dB)

75 Hz - 13 kHz

Frequency Range (-10 dB)

58 Hz - 16 kHz

Nominal Dispersion

160 H x 20 V

Long-Term Power Handling

150 W (600 W peak)

Sensitivity (SPL / 1 W @ 1 m)

87 dB SPL

Maximum SPL @ 1 m

109 dB SPL (115 dB SPL peak)

Nominal Impedance

8

FEATURES

Built-in, passively cooled Class D amplification with a universal power supply

 Dual Ethernet ports with Neutrik etherCON connectors

 High-performance, high-density system solution in a truck-pack friendly format

 High-power-handling transducers deliver low distortion, high fidelity, and class-leading output

 LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers

 Rear-panel LCD provides complete access to control features

 Reinforced composite loudspeaker enclosures Innovative three-point rigging system

 Supports HARMAN HControl Ethernet

 User-controllable DSP

FEATURES

Upgrade Your Live Sound Setup If you need to turn up the volume in your venue, JBL’s SRX910LA Powered Line Array Loudspeakers delivers up to 880 watts of crisp, clean sound! The SRX910LA boasts two 10-inch neodymium woofers and a 3-inch compression driver — more than enough power to handle live sound in your medium- to large-sized venue. Plus, the integrated power and a wide range of DSP effects make the SRX910LA an excellent choice for those seeking a plug-and-play solution right out of the box. The live sound engineers at Sweetwater love the amount of control JBL built into the SRX900 series — a rear-panel LCD makes switching up your settings simple. And if you need control from a distance, the SRX910LA is both Ethernet and Wi-Fi compatible to connect to JBL’s all-encompassing software suite. Looking to bolster your live sound system? The SRX910LA fits the bill.High-performance, 10-inch drivers

FEATURES

• 880-watt 2-way Powered Line Array Loudspeaker with 2 x 10-inch LF Drivers
• 3-inch Compression Driver
• Wi-Fi Compatibility
• JBL Software Suite
• DSP

FEATURES

• 300-watt Passive Modular Line Array Speaker - White (each)

The F1 Model 812 from Bose is a powered flexible array loudspeaker that offers four different vertical coverage patterns, allowing users to optimize their sound to fit the performance environment. So whether you're playing at floor level, on stage facing a dance floor, or facing raked seats or bleachers, you can adapt your PA to the room.

The speaker features eight mid/high frequency drivers that are mounted on a flexible baffle, which allows you to push or pull the array into position to create four vertical coverage patterns: "Straight," "J," "Reverse J," or "C." Once set, the system automatically changes EQ settings to maintain optimum tonal balance for each particular coverage pattern.

The F1 Model 812 also features a high performance 12-inch woofer that provides strong low-frequency output, and an integrated 2-channel mixer. Each of the mixer's inputs feature independent level controls, and can accommodate XLR, 1/4-inch and RCA connections.

Flexible baffle can be configured into four unique shapes, allowing you to choose the best possible coverage pattern for the application

8 vertically mounted drivers, each mounted on a custom waveguide, help deliver wide, consistent coverage

12" LF high-performance woofer provides strong low-frequency output

2-channel integrated mixer with independent level controls on each input

XLR, 1/4" and RCA input connectors

FEATURES

• Exclusive flexible array can be configured into four unique shapes (“Straight,” “C,” “J” or “Reverse J”), allowing the customer to choose the best possible coverage pattern for the application
• Bi-amplified design with 2 high-output, Class-D amplifiers to separately power the FLEX array and 12-inch LF driver
• Wide, consistent coverage from an 8-driver mid/high line array, with each driver mounted on a custom 100° waveguide
• 2 input channels with independent volume controls and Line Level/Mic switch on Channel 1
• Strong, low-frequency output from a 12-inch high-performance woofer

Bose Professional ShowMatch DeltaQ SM5 full-range array modules provide 5 nominal vertical coverage with included field-changeable waveguides offering choice of 70 or 100 horizontal coverage with optional accessory 55 waveguides.  Replace single waveguide panel to form horizontal asymmetrical patterns.   The 2-way module requires external power amplifiers (2- channels) and DSP to provide full-range response from 59 18,000 Hz with peak array output of up to 145 dB.

FEATURES

DeltaQ technology is the next-generation array design that allows Q (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.

Changeable waveguides includes both 70and 100waveguides to adjust horizontal coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change single panel for asymmetrical patterns. Optional 55waveguides for SM5.

Compact, portable enclosure Versatile design allows both fixed install and portable applications, from small clubs and houses of worship to the largest performing arts centers and AV productions.

Tour-sound output level 4x Bose EMB2S compression

drivers, improved with more HF output, and 2x 8-inch neodymium high-power woofers allow array output up to 145 dB SPL.

3-point quick pin rigging -Fast, easy setup with up to 24 full-range modules and 10:1 safety factor.

Removable side rigging-guard/handles provides rigging guard and hand holds for portable applications. Easily removed for permanent installs for reduced width and cleaner visual appearance.

Rigging overlap angle adjustment -only on SM5 modules, coverage overlap or splay can be adjusted from 0 to 5, in 1increments, to provide long throw distance and high SPL.

FEATURES

• Advanced Acoustic Performance - EON715 Powered PA Speaker features state-of-the-art design and technology. The advanced waveguide and transducer ensure uniform coverage across the entire listening area. EON715 is powered via wired electric.
• The woofer is designed for lower impedance and high efficiency, a horn delivers smooth off-axis sound and a compression driver delivers powerful, balanced response in a lightweight footprint.
• The speaker is powered by 1,300 watts of ultra-efficient discrete Class D amplification, for clean, clear sound. The free JBL Pro Connect app provides full control of settings from a phone or tablet. For control of settings on the unit, the backlit color LCD screen provides easy access.
• Versatile Connectivity - Equipped with Bluetooth 5.0, the EON715 powered PA speaker allows for convenient wireless streaming to the speaker - perfect for DJs, lecturers, houses of worship, karaoke, and live performances. 2 XLR, 1/4" Combo Jacks and 1 XLR Male Thru-jack are also available for quick connection of devices.
• Portable and User-Friendly - Designed with portability in mind, the EON715 is part of the lightweight, easy-to-use, mix and match EON700 Series, making it ideal for musicians and creative providers on the go. Need more bass? Add an optional EON718S to add some boom to the room.
• The Digital Signal Processing (DSP) package provides comprehensive control over EQ, limiters, delay, dbx Automatic Feedback Suppression, ducking and other functions. Setting can be accessed on the speaker using an integrated backlit LCD screen, or from anywhere in the venue using the free JBL Pro Connect App.
• Built-in pole mount and optional EON700 Universal Yoke Mount expands system configuration options. Stackable cabinets allow easy storage.
• EON715 loudspeakers can be used as main PA speakers, stage monitors, or floor monitors. Top and rear suspension points enable flying speakers; rear suspension points serve as connections for fixed installations, using an optional universal yoke mount.

FEATURES

• Advanced Acoustic Performance - EON715 Powered PA Speaker features state-of-the-art design and technology. The advanced waveguide and transducer ensure uniform coverage across the entire listening area. EON715 is powered via wired electric.
• The woofer is designed for lower impedance and high efficiency, a horn delivers smooth off-axis sound and a compression driver delivers powerful, balanced response in a lightweight footprint.
• The speaker is powered by 1,300 watts of ultra-efficient discrete Class D amplification, for clean, clear sound. The free JBL Pro Connect app provides full control of settings from a phone or tablet. For control of settings on the unit, the backlit color LCD screen provides easy access.
• Versatile Connectivity - Equipped with Bluetooth 5.0, the EON715 powered PA speaker allows for convenient wireless streaming to the speaker - perfect for DJs, lecturers, houses of worship, karaoke, and live performances. 2 XLR, 1/4" Combo Jacks and 1 XLR Male Thru-jack are also available for quick connection of devices.
• Portable and User-Friendly - Designed with portability in mind, the EON715 is part of the lightweight, easy-to-use, mix and match EON700 Series, making it ideal for musicians and creative providers on the go. Need more bass? Add an optional EON718S to add some boom to the room.
• The Digital Signal Processing (DSP) package provides comprehensive control over EQ, limiters, delay, dbx Automatic Feedback Suppression, ducking and other functions. Setting can be accessed on the speaker using an integrated backlit LCD screen, or from anywhere in the venue using the free JBL Pro Connect App.
• Built-in pole mount and optional EON700 Universal Yoke Mount expands system configuration options. Stackable cabinets allow easy storage.
• EON715 loudspeakers can be used as main PA speakers, stage monitors, or floor monitors. Top and rear suspension points enable flying speakers; rear suspension points serve as connections for fixed installations, using an optional universal yoke mount.

The Bose L1 PRO32 Portable Line Array is a 480W powered column PA speaker thats versatile and simple to use. It functions as a main PA in a wide variety of positions, with a pair able to cover an audience up to 350. The onboard DSP processing, 3-input mixer, and easy-to-use tone presets help working presenters, musicians, instructors, performers, and A/V providers get powerful, clean, and clear sound quickly.

The straight-shaped line array provides 180 horizontal and 0 angled vertical coverage for a wide and even response throughout the room. Depending on the subwoofer used, the system will offer 123 dB (Sub1) or 128 dB (Sub2) of peak SPLplenty of volume for mid- to larger-sized venues including clubs, festivals, houses of worship, conference centers, performance spaces, and special events. The highly efficient 480W Class-D amplifier powers the thirty-two 2" mid-high drivers and when coupled with the subwoofer, will provide crisp, detailed sound with a wide frequency range.

Three inputs are on the power stand. Inputs 1 and 2 feature combo XLR-1/4" connectors that will accept Mic, Line, and a Hi-Z input for Instruments. Phantom power is available to power condenser microphones or active DI boxes. Inputs 1 and 2 also offer a channel tone match preset button for Mic and Instrument. Additionally, you can select a custom preset from the L1 Mix app. Input 3 features 1/4" and 3.5mm connectors as well as Bluetooth streaming from a compatible device. All three channels offer Mute, Volume, Bass, and Treble controls. Combine two microphones for presentations, or combine a mic, instrument, and backing tracks for singer/songwriter gigs.

All three inputs are mixed to a mono signal internally and are passed-thru the Line Out XLR connector for connecting to additional bass modules or other speaker systems. For a true stereo L/R operation, two L1 PRO32 are needed with each to receive independent the left and right signals respectively.

Bose's L1 Mix app allows you to adjust mixer setting instantly from your phone from the stage or while walking around the room. Hear how your mixes sound and fine-tune as you go. The LED encoders on the the sub/mixer module are bidirectional and will update in real-time whether using the onboard controls or the app. The app also provides access to the entire ToneMatch library of custom EQ presets.

Dialed in for Pure Performance

L1 PRO32 portable line array system advances the PA category into a new era of on-the-go audio for singer-songwriters, mobile DJs, and bands. The system offers 180 horizontal coverage, unmatched clarity and tonal balance, plus extended bass response with a unique RaceTrack woofer design. A built-in multichannel mixer offers EQ, reverb, and phantom power, plus Bluetooth streaming and access to the full library of ToneMatch presets.

Mixer On-Board + Phone App

The L1 PRO32 system features a built-in mixer, so you can connect various instruments, microphones, and other sources easily. You get two combo XLR-1/4" phantom-powered inputs, 1/4" and 3.5mm aux inputs, plus Bluetooth streaming capability. Illuminated rotary encoders give you instant access to Volume, Tone, and Reverb settings per channel. Select between optimized system EQ presets for live music, recorded music, and more. Add more instruments and other audio sources via dedicated ToneMatch portone cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (available separately). The L1 Mix app provides channel-level mixer control.

Intuitive and Instant Wireless Control

With the L1 Mix app, you can adjust mixer settings instantly from your phone or even walk the room, hear how the mix sounds, and fine-tune as you go. Change volume and tone settings in the app and watch the LED encoder on your L1 PRO32 move to matchthe mixer and app are always in sync, in real time. Plus, you have access to the entire ToneMatch library of custom EQ presets. With the L1 Mix app, you get the connectivity that empowers your performance, giving you greater flexibility for on-the-fly tweaks via controls that are intuitive and instant.

Premium Sound with Ease of Setup

The L1 PRO32 offers premium sound on stage and practical portability everywhere else. With an L1 Pro system, you can get from parking to performing with ease and from setup to setlist in minutes. It's the power to sound your best and simply perform.

Bose L1 PRO Series Sub1 Portable Bass Module

The L1 PRO Series Sub1 Portable Bass Module is a high-output active subwoofer well suited for mobile entertainment, AV rental, event production, clubs, and performance venues. The 13x7" RaceTrack direct radiating driver is powered by a 480W Class-D amplifier, which delivers high sound pressure levels with dynamic and musical sound reproduction of very-low frequencies. The Sub1 connects to the L1 PRO32 line array via SubMatch cable and works seamlessly with the L1 Mix app. The subwoofer can also be paired with a Bose S1 Pro system to create a micro-PA. An M20 threaded input on the side of the sub allows you to deploy a speaker pole for any speaker up to 34 lb. Two subs can be used together for a cardioid mode, which lowers the stage volume and decreases feedback issues. The Sub1 ships with a slip cover and a power cord.

Bass without the Bulk

The Sub1 is a powered, portable bass module that combines with virtually any portable PA and delivers low-end performance down to 40 Hz. Sub1 is the most compact subwoofer option for the Bose L1 PRO32, combining seamlessly via single-cable SubMatch connectivity.

RaceTrack Design

The unique RaceTrack woofer integrated into the Bose Sub1 modular subwoofer delivers powerful bass, has an optimized center of gravity, and save a lot of space. This slim design means you get the full impact of a conventional subwoofer without the cumbersome size, freeing up room in your vehicle and on the stage, and making every carry in between home to car, vehicle to venue much easier.

FEATURES

• compact portable wireless PA system
• built-in power amplifier, high- and low-frequency drivers, 3-channel mixer
• Channel 1 and 2: mic/line — XLR/TRS, wireless RF receiver
  • ToneMatch presets and reverb available
  • compatible with Bose S1 Pro+ Wireless Mic/Line and Instrument Transmitters
  • TRS inputs become channel I/O inserts when RF transmitters used
• Channel 3: stereo line — TRS, 3.5mm, Bluetooth
• volume, treble, bass level controls on all channels
• Auto EQ senses orientation and optimizes performance for 4 different mounting options:
  • table or floor (vertical), tilt-back, stage monitor (horizonal), on pole
  • Bose logo can be rotated to match orientation
• mix, volume, tone controls available via Bose Music Bluetooth app

Other features:

• rechargeable lithium-ion battery pack
  • plays up to 11 hours on a charge
  • AC power cord included
• XLR balanced line output for connecting another powered speaker or sub
• 2 charging ports for optional rechargeable Bose S1 Pro+ RF transmitters
• USB-A charging port for a mobile device
• USB-C port for system software updates
• aluminum and polypropylene construction with built-in carrying handle
• 35mm socket for pole-mounting
• optional backpack/cover available
• dimensions: 9.5" W x 13" H x 11" D
• weight: 14.4 lbs.

FEATURES

• PORTABLE PA SYSTEM IS READY TO PLAY ANYWHERE. Weighing in at 14.4 lbs., this portable PA system is 1 lb. lighter than the original, and features an ergonomic carry handle, making it perfect for music that moves.
• FOUR POSITIONING OPTIONS TO ADAPT TO THE MOMENT. Place it vertically, tilted back, horizontally, or on a stand (compatible with standard 35 mm mounts). Auto EQ ensures the best sound in any orientation.
• SIMPLIFY YOUR SETUP EVEN MORE. Integrated 3-channel mixer features two channels for microphones and instruments and one dedicated to music playback.
• LEAVE THE CABLES BEHIND. Optional mic/line and instrument wireless RF transmitters pair effortlessly with the system’s integrated wireless RF receivers, and can be stored neatly in the speaker and charge (sold separately).
• STAY CHARGED AND READY TO GO. When no power source is available, the rechargeable lithium-ion battery provides up to 11 hours of play time on a single charge.
• ADJUST AT THE PUSH OF A BUTTON. Speaker across the stage or room Get full control over settings with the Bose app. Volume, EQ, reverb, and the entire ToneMatch library of EQ presets is right in your hand.
• *As with any battery-operated device, battery performance can vary based on a number of different factors. These include the type of content being played, the volume at which it’s played, and the surrounding temperature. The Bose S1 Pro plus wireless PA system was rigorously tested and verified to provide up to 11 hours of battery life while playing music at room temperature from Spotify’s Global Top 50 at a comfortable volume that you can talk over while listening indoors. A singer/songwriter performing indoors for up to 100 people can expect to get 5 hours or more of battery life at performance-volume levels.

FEATURES
