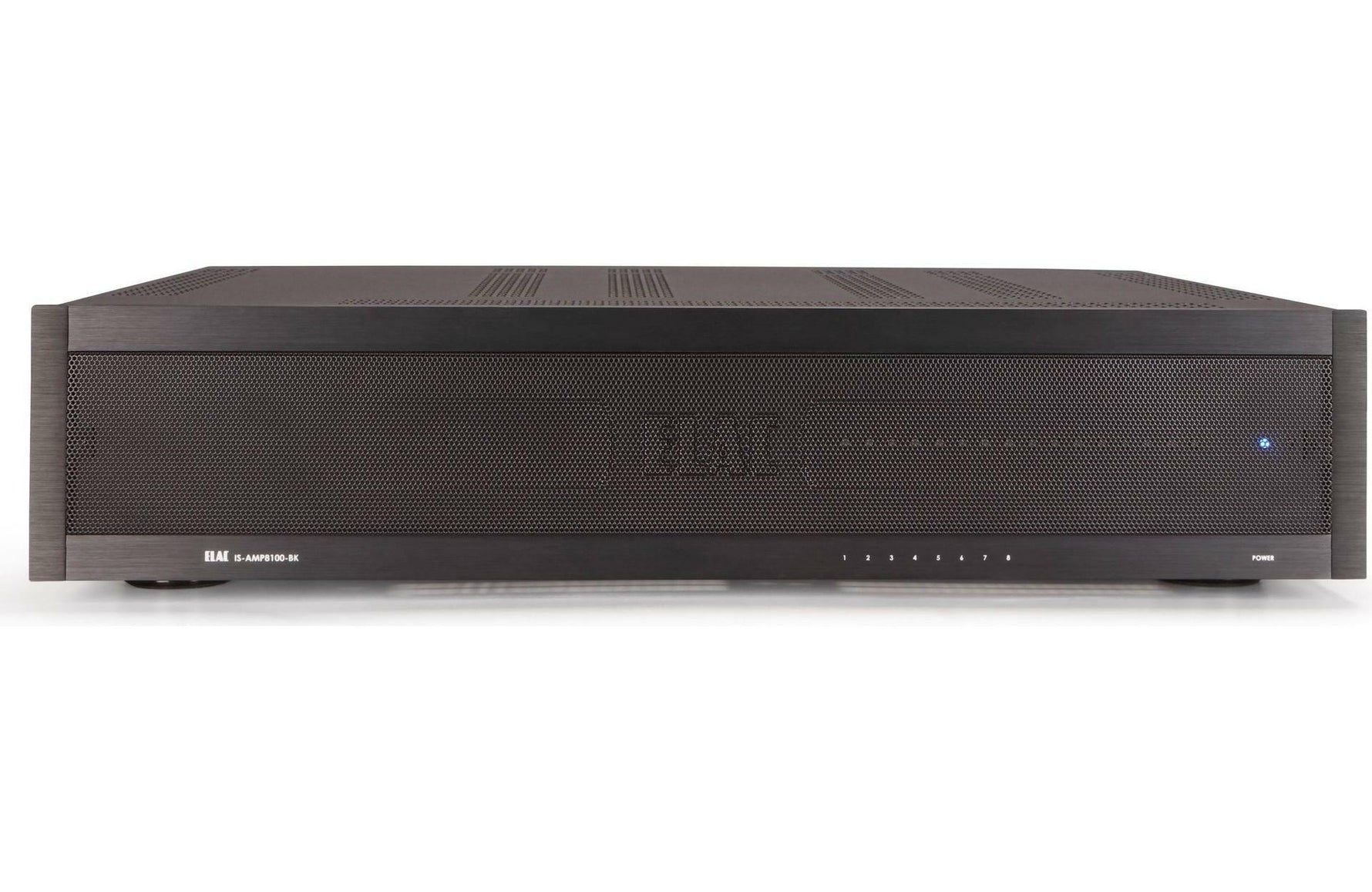

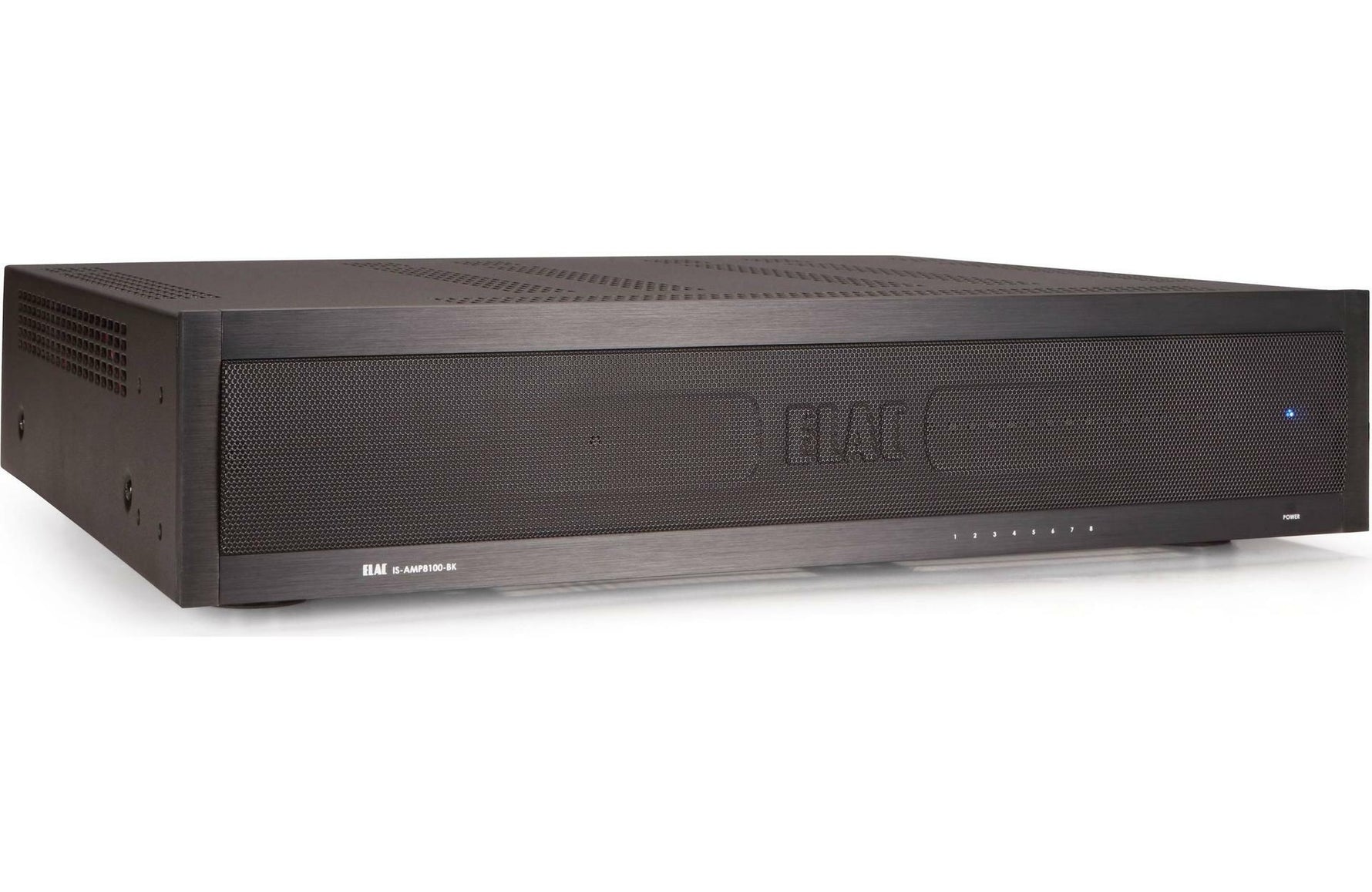

Elac IS-AMP8100-BK 8 x 100W Multi-Zone Amplifier - Black

Product info:

• 8-channel amplifier with 4 independent playback zones


• 100 watts per channel into 8 ohms or 4 ohms with all channels driven


• 200 watts per channel into 8 ohms in bridged mode


• high-efficiency Class D amplification


• signal-to-noise ratio: 95 dB


• web-based graphic user interface (GUI) for more intuitive system setup and tuning


  • full matrix audio routing assign any input to any output


  • digital signal processor (DSP) with customizable parametric EQ for each channel


  • preset EQ curves for ELAC speakers

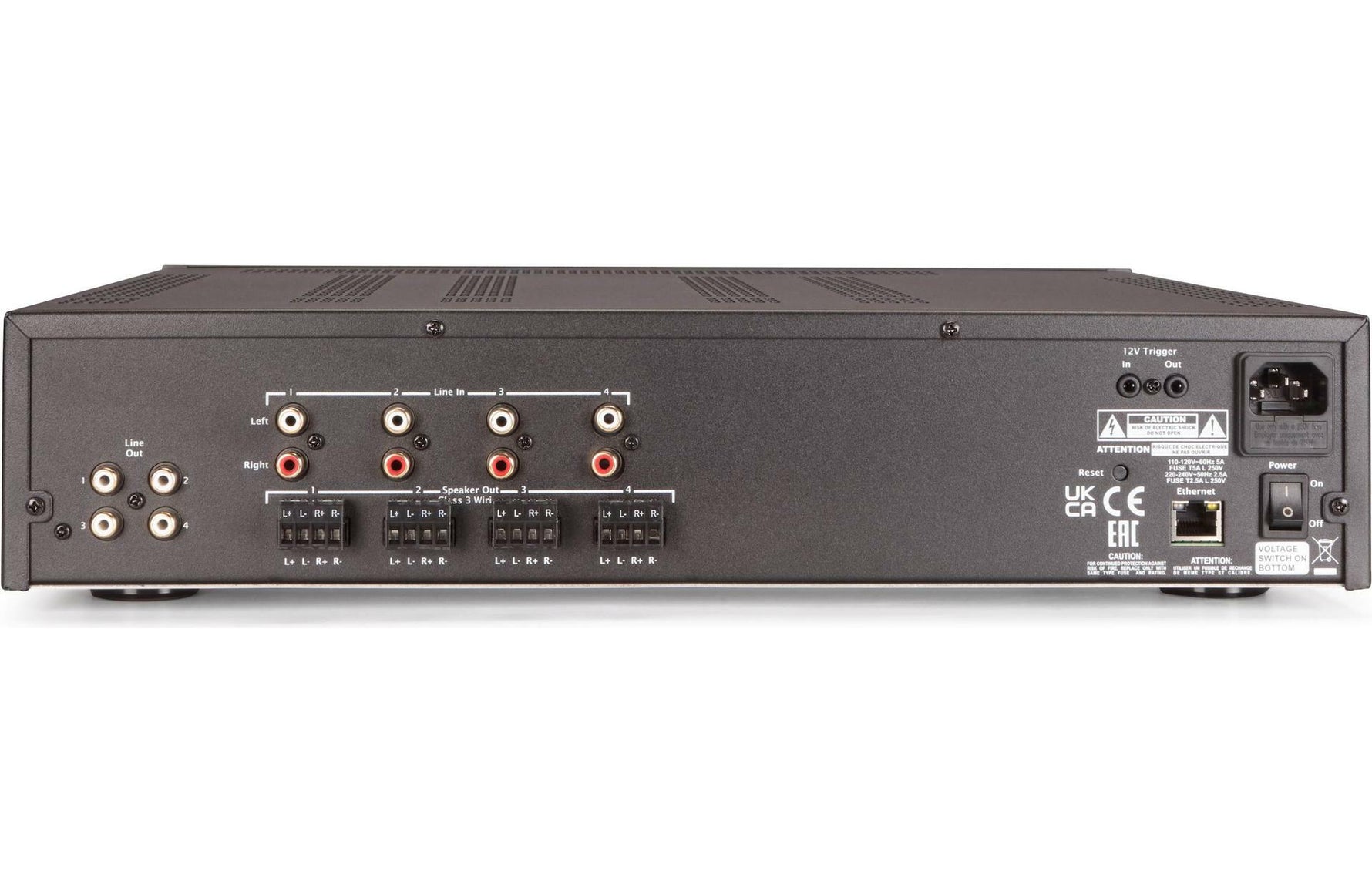

Connections:

• 4 assignable stereo RCA line-level stereo inputs


• 4 RCA mono line-level stereo outputs that can be connected to additional amplifiers or powered subwoofers


• 12V trigger input and output for automated turn-on


• signal-sensing input activates the amplifier when a source is detected


• Phoenix-style speaker connectors support up to 12-gauge wire


• Ethernet port for network connection, firmware updates, and IP-control with 3rd party home automation systems
  • does not allow audio streaming




• removable AC power cord

Dimensions and other info:

• rack-mountable chassis


• 17"W x 3-15/16"H x 14-15/16"D (2U rack space)


• weight: 16.32 lbs.
