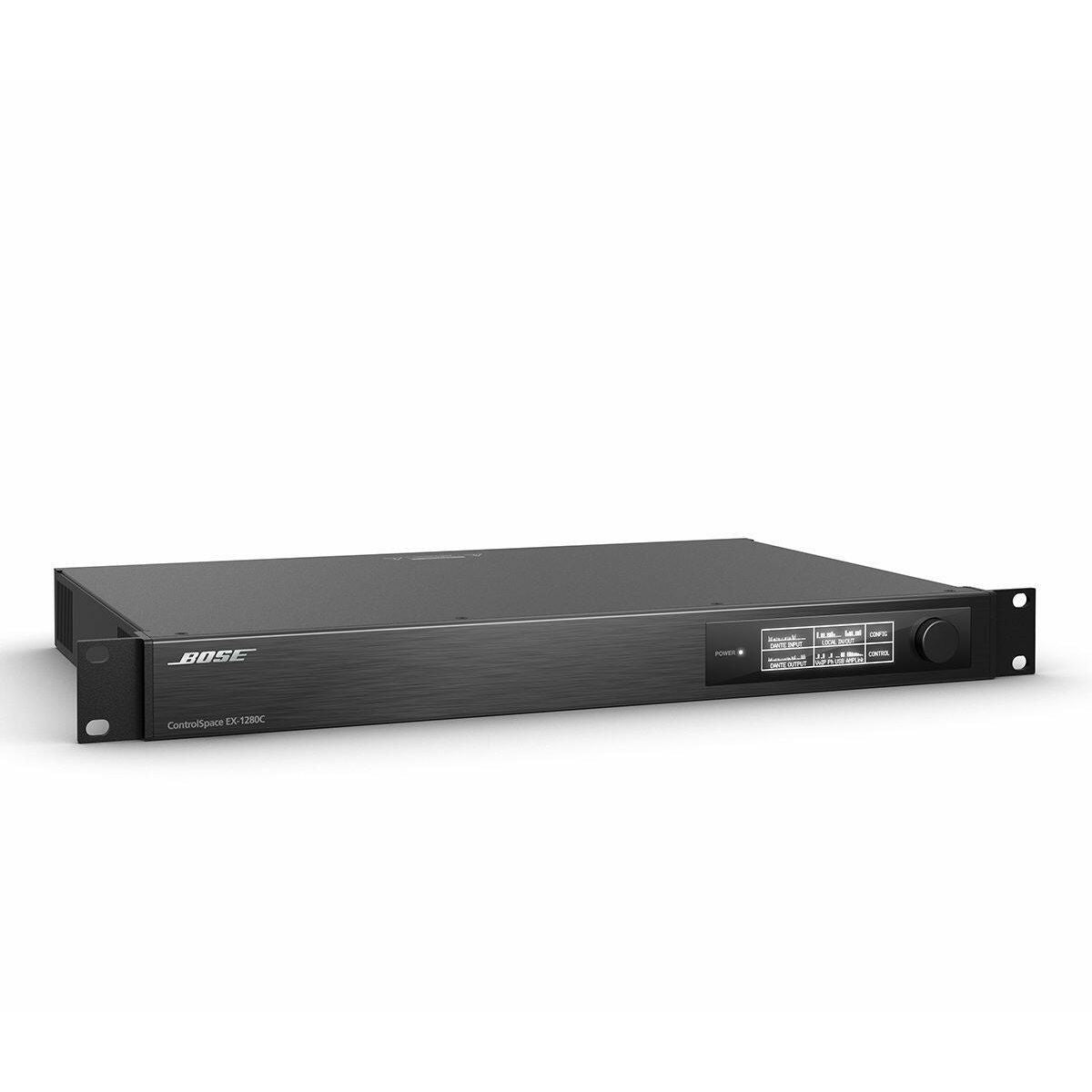

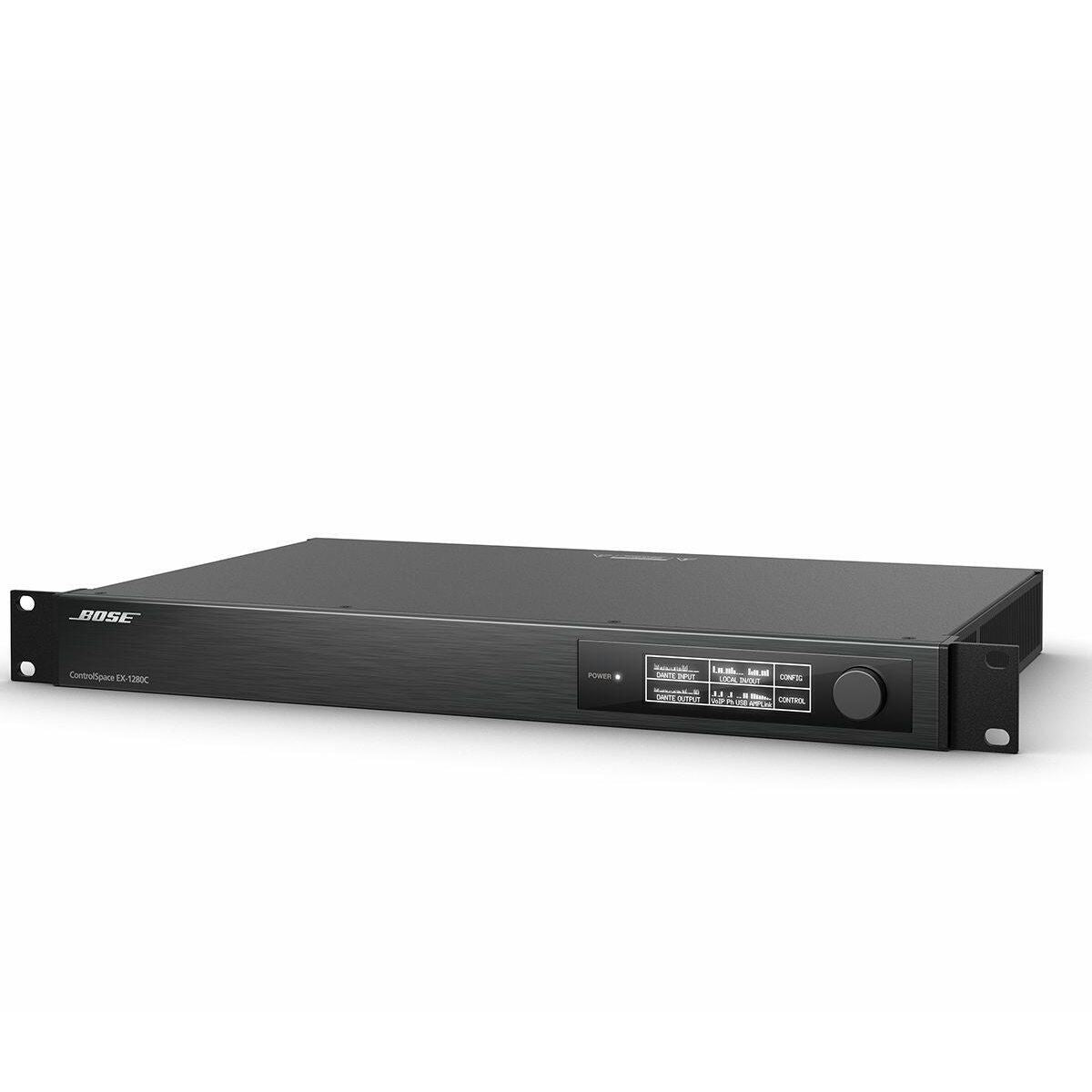

Bose Professional ControlSpace EX-1280C Conferencing Sound Processor (772234-111

A flexible DSP platform for scalable systems, ControlSpace EX conferencing processors have the features to support rooms of various sizes and the flexibility to meet future needs. With an open-architecture, all-in-one design, the ControlSpace EX-1280C offers signal processing for integrated-microphone audio conferencing applications. As the highest-capability processor of the ControlSpace EX family, the EX-1280C includes 12 mic/line analog inputs, 8 analog outputs, 8 AmpLink digital outputs, 12 acoustic echo cancellers (AEC), and 64 x 64 Dante connectivity. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.

All-in-one design supports simultaneous VoIP, PSTN and USB soft codecs in a single 1RU model

12 acoustic echo cancellers (AEC) route to both analog and Dante inputs; multiple references allow one EX-1280C processor to support multiple rooms or AEC-sharing across multiple processors

Adaptable noise cancellation on each AEC channel; non-linear processing and comfort noise to enhance the clarity and intelligibility of meetings

2-line VoIP with an internal web interface allowing IT personnel to configure VoIP parameters without design file access or integrator involvement

PSTN connection (RJ-11) for worldwide POTS/analog telephone systems

USB connection facilitates easy integration with PC soft codecs

Dante audio networking supports 64 x 64 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones

Bose AmpLink port provides 8-channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose amplifiers

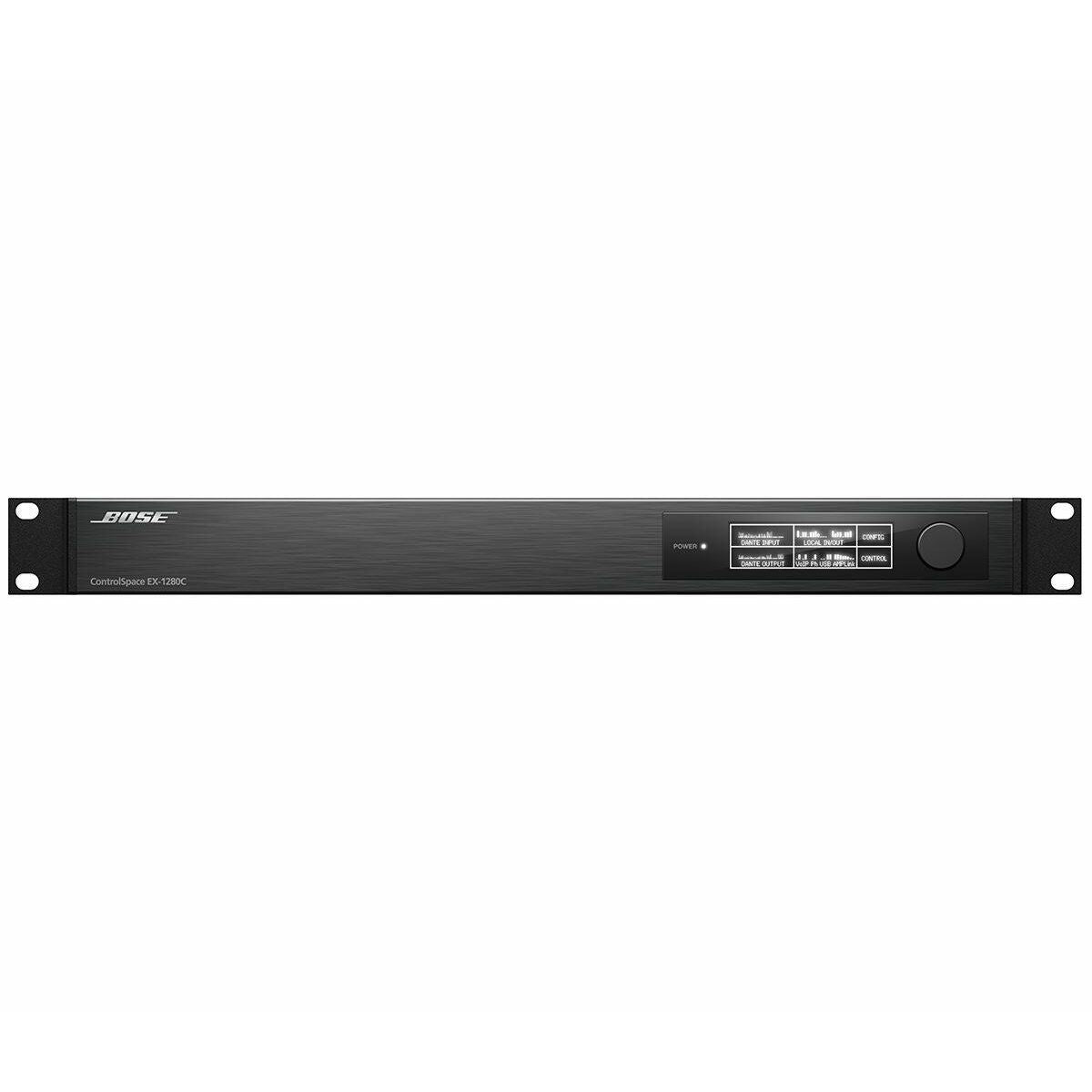

Front-panel interface features large OLED display and rotary encoder for setting network parameters and monitoring channel activity

GPIO (5 in/5 out) for external connections including microphone pushbuttons or driving microphone LEDs

Technical Summary

Signal Processor
32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz

Dynamic Range
> 115 dB A-weighted 20 Hz 20 kHz, analogy input to analog output

Output Channels
8 balanced, line level

Frequency Response
20 Hz to 20 kHz (+0.3 dB/-0.1 dB)

Input Channels
12 balanced, mic/line level

PC Configuration Software
ControlSpace Designer software version 5.5 or later
